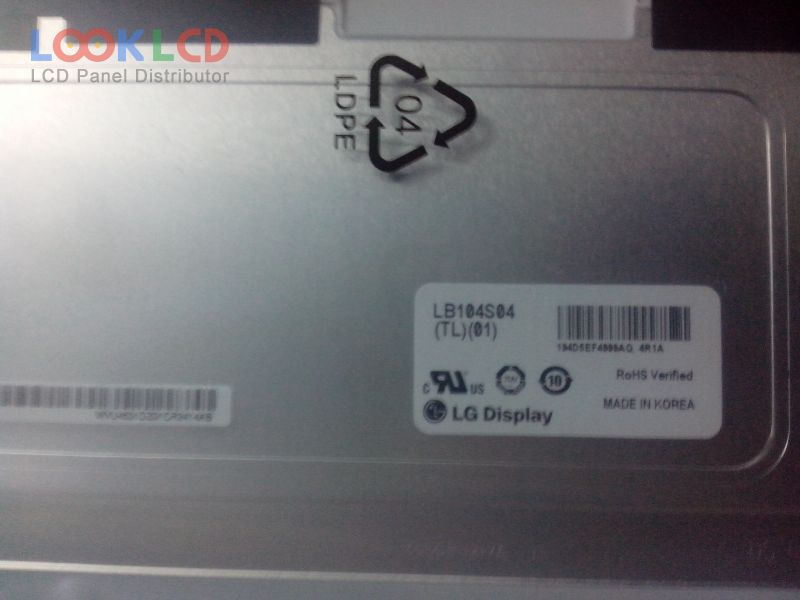

| PartNumber | LB104S04-TL01 |
| Znamka | LG Display |
| Velikost | 10.4 |
| Aplikacija | IA |
| Resolucija | 800×600 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | LG Display |
| panelni model | LB104S04-TL01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.4 inch |
| resolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 211.2×158.4 mm |
| oris | 224.5×172×7.1 mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 4/6 (Typ.)(Tr/Td) |
| vidni kot | 70/70/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
