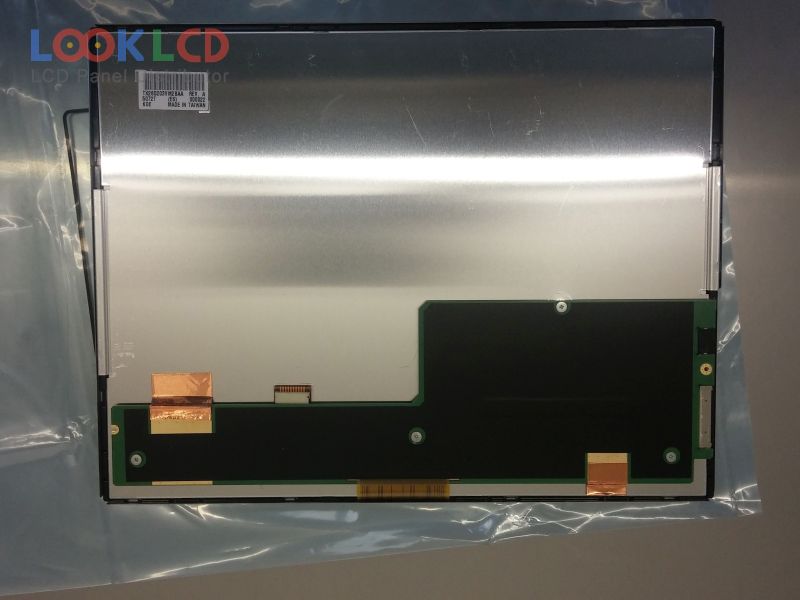

| PartNumber | TX26D203VM2BAA |
| Znamka | KOE |
| Velikost | 10.4 |
| Aplikacija | IA |
| Resolucija | 1024×768 |
| Sestava | LCM |
| Svetlost | 1200 |
| CR | 800:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | KOE |
| panelni model | TX26D203VM2BAA |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.4 inch |
| resolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 211.2×158.4 mm |
| oris | 235×180.2×10 mm |
| površino | |
| svetlost | 1200 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4 stringsWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6/8-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
