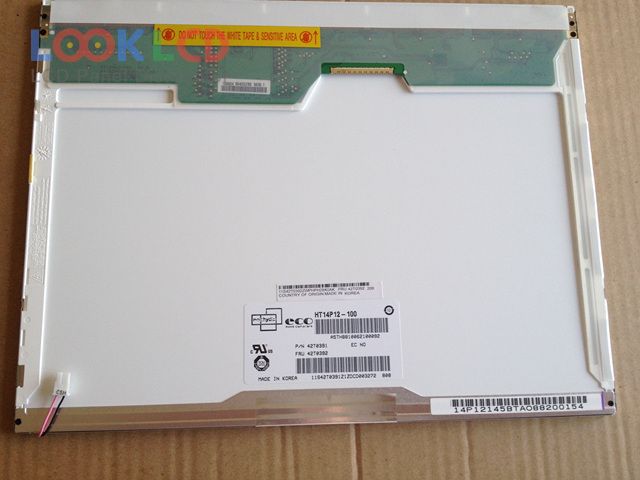

| PartNumber | HT14P12-100 |
| Znamka | HYDIS |
| Velikost | 14.1 |
| Aplikacija | NBPC |
| Resolucija | 1400×1050 |
| Sestava | LCM |
| Svetlost | 150 |
| CR | 200:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | BOE HYDIS |
| panelni model | HT14P12-100 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 14.1 inch |
| resolucija | 1400(RGB)×1050 , SXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 285.6×214.2 mm |
| oris | 299×228×5.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | |
| svetlost | 150 cd/m² (Typ.) |
| kontrastno razmerje | 200:1 (Min.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 25/25 (Max.)(Tr/Td) |
| vidni kot | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (2 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
