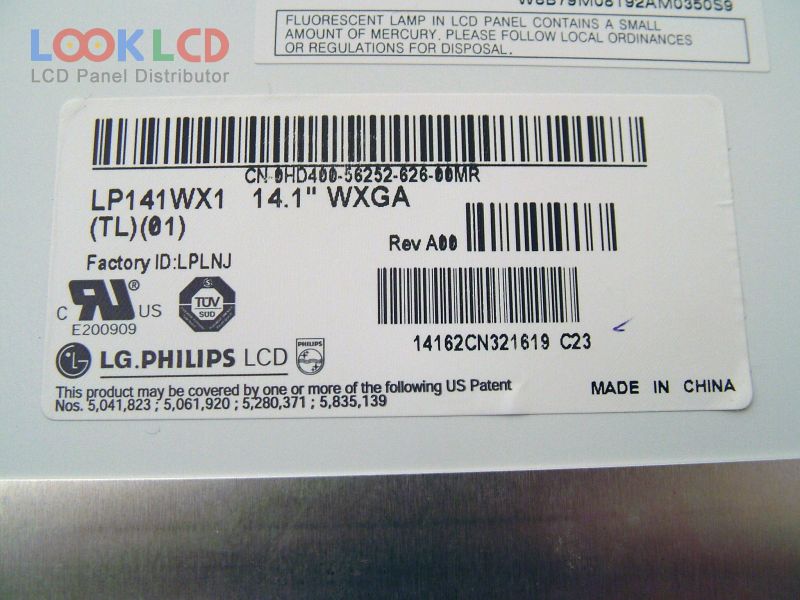

| PartNumber | LP141WX1-TL01 |
| Znamka | LG Display |
| Velikost | 14.1 |
| Aplikacija | NBPC |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 185 |
| CR | 350:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | LG.Philips LCD |
| panelni model | LP141WX1-TL01 9 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 14.1 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 303.74×189.84 mm |
| oris | 319.5×217.4×5.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare |
| svetlost | 185 cd/m² (Typ.) |
| kontrastno razmerje | 350:1 (Min.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 6/19 (Typ.)(Tr/Td) |
| vidni kot | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
