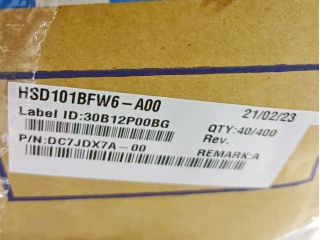

| PartNumber | HSD101BFW6-A00 |
| Znamka | HannStar |
| Velikost | 10.1 |
| Aplikacija | Pad & Tablet |
| Resolucija | 1024×600 |
| Sestava | CELL, a-Si TFT-LCD |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | |
| proizvajalec | HannStar |
| ime modela | HSD101BFW6-A00 |
| velikost zaslona | 10.1 inch |
| vrsto zaslona | CELL, a-Si TFT-LCD |
| število slikovnih pik | 1024(RGB)×600 (WSVGA) 117PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 222.72 × 125.28 (H×V) |
| obris (mm) | 230.4 × 134.2 × 0.8 (H×V×D) |
| svetilnost | 0 cd/m² |
| kontrastno razmerje | 800 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 10/20 (Typ.)(Tr/Td) ms |
| dober pogled na | Symmetry |
| način dela | IPS Pro, Normally Black, Transmissive |
| debelina stekla | 0.40+0.40 mm |
| transmisivnost | 5.81% (Typ.)(with Polarizer) |
| barvna globina | 16.7M 45% NTSC |
| osvetlitev ozadja | No B/L |
| masa | - |
| uporablja za | Pad & Tablet |
| hitrost osveževanja | - |
| zaslon na dotik | Without |
| seznam gonilnikov ic | Suggest COG EK79007AD, HX8282-C, EK73215BCGA, HX8696-A |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
