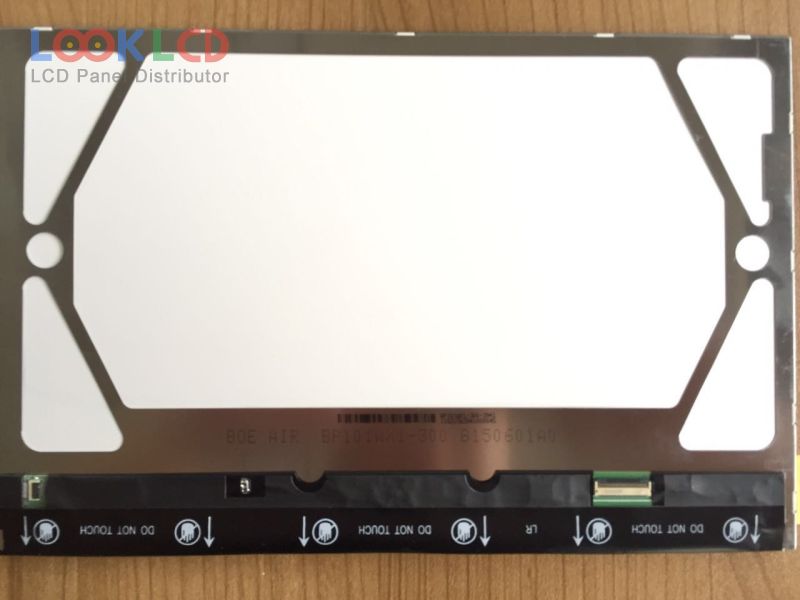

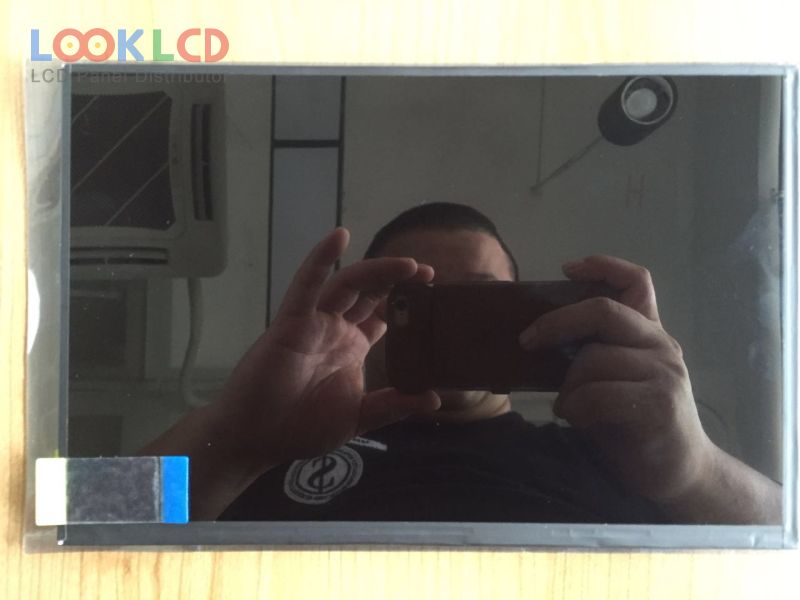

| PartNumber | BP101WX1-300 |
| Znamka | BOE |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 900:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | BOE |
| panelni model | BP101WX1-300 5 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno območje | 216.96×135.6 mm |
| oris | 228.21×148.86×4.59 mm |
| površino | Hard coating (3H), Antireflection |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193153% |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4 stringsWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 45 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HT12X21-221 | HYDIS | 12.1 | 1024×768 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
