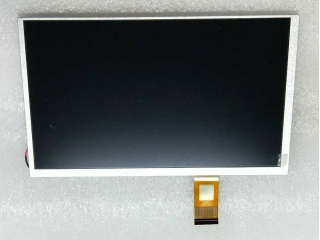

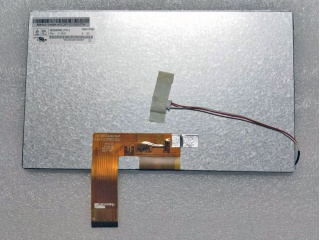

| PartNumber | HSD090LFW1-B00 |
| Znamka | HannStar |
| Velikost | 9.0 |
| Aplikacija | Automotive Display |
| Resolucija | 1024×600 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 262K/16.2M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | HannStar |
| model | HSD090LFW1-B00 |
| velikost diagonale | 9.0 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1024(RGB)×600 [WSVGA] 132PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 196.608(H)×114.15(V) mm |
| obris dim. | 211.1(H)×126.5(V) ×6(D) mm |
| območje okvirja | 200.01(H)×117.55(V) mm |
| zdravljenje | Glare (Haze 0%) |
| svetilnost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 17/18 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način delovanja | IPS Pro, Normally Black, Transmissive |
| podpira barvo | 262K/16.2M 50% NTSC |
| Izvor svetlobe | WLED , 150K hours , W/O Driver |
| utež | 230g (Typ.) |
| namenjen za | Automotive Display |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| napajanje | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
