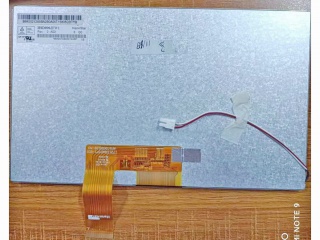

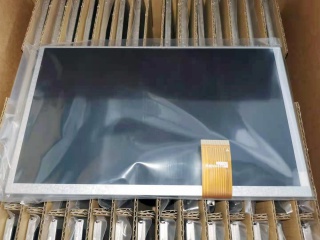

| PartNumber | HSD090JFW1-A02 |
| Znamka | HannStar |
| Velikost | 9.0 |
| Aplikacija | Automotive Display |
| Resolucija | 1024×600 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | 3S13P |
| Vmesnik | LVDS |
| proizvajalec | HannStar |
| ime modela | HSD090JFW1-A02 |
| velikost zaslona | 9.0 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 1024(RGB)×600 (WSVGA) 132PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 196.608 × 114.15 (H×V) |
| obris (mm) | 211.1 × 126.5 × 6 (H×V×D) |
| površina okvirja (mm) | 200.01 × 117.55 (H×V) |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 800 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 17/18 (Typ.)(Tr/Td) ms |
| dober pogled na | Symmetry |
| način dela | IPS Pro, Normally Black, Transmissive |
| barvna globina | 16.2M 50% NTSC |
| osvetlitev ozadja | 3S13P WLED , 15K hours , No Driver |
| masa | 226g (Typ.) |
| uporablja za | Automotive Display |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (1 ch, 8-bit) , FPC 40 pins |
| napajanje z napetostjo | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
