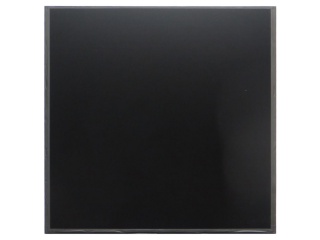

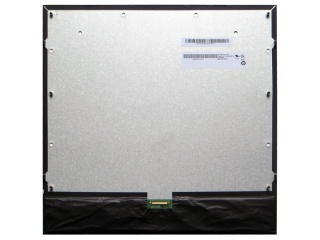

| PartNumber | G170HAN01.0 |
| Znamka | AUO |
| Velikost | 17.0 |
| Aplikacija | Industrial |
| Resolucija | 1920×1920 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 9S6P |
| Vmesnik | |
| znamka plošče | AUO |
| velikost plošče | 17.0" |
| resolucija | 1920(RGB)×1920, 159PPI |
| prikazno območje | 305.28(W)×305.28(H) mm |
| velikost obrisa | 325.01(W)×319.33(H) ×12.2(D) mm |
| svetlost | 600 cd/m² (Typ.) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 16.7M 72% NTSC |
| pogostost | 60Hz |
| utež | 1.20Kgs (Max.) |
| panelni model | G170HAN01.0 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | - |
| površino | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| način prikaza | AHVA, Normally Black, Transmissive |
| odzivni čas | 13/12 (Typ.)(Tr/Td) |
| tip svetilke | 9S6P WLED , 50K hours , With LED Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial |
| G170J1-LE1 | Innolux | 17.0 | 1920×1200 |
| LB170X01-TL01 | LG Display | 17.0 | 1024×502 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LQ170M1LA4B | SHARP | 17.0 | 1920×1200 |
| M170E8-L01 | Innolux | 17.0 | 1280×1024 |
| M170EG01 V8 | AUO | 17.0 | 1280×1024 |
| QD17EL07 Rev.09 | QDI | 17.0 | 1280×1024 |
| TD170WGCA1 | TPO | 17.0 | 1280×1024 |
