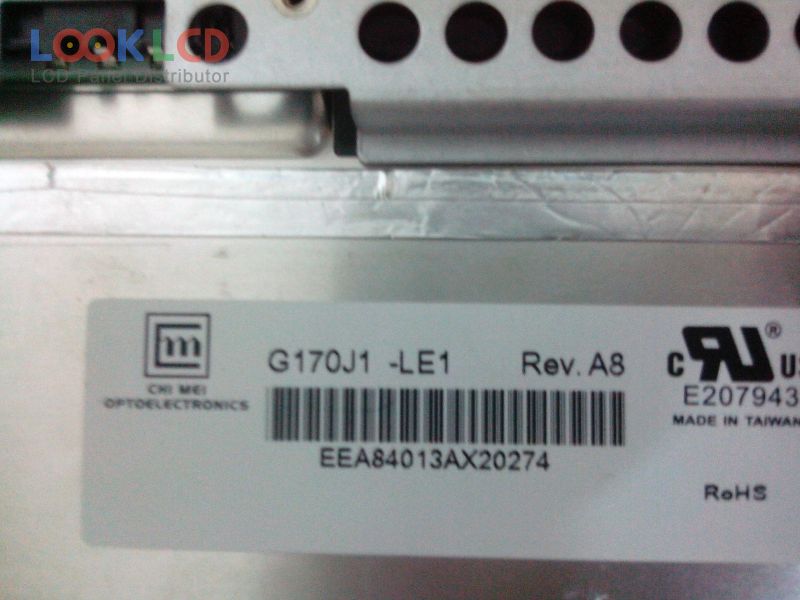

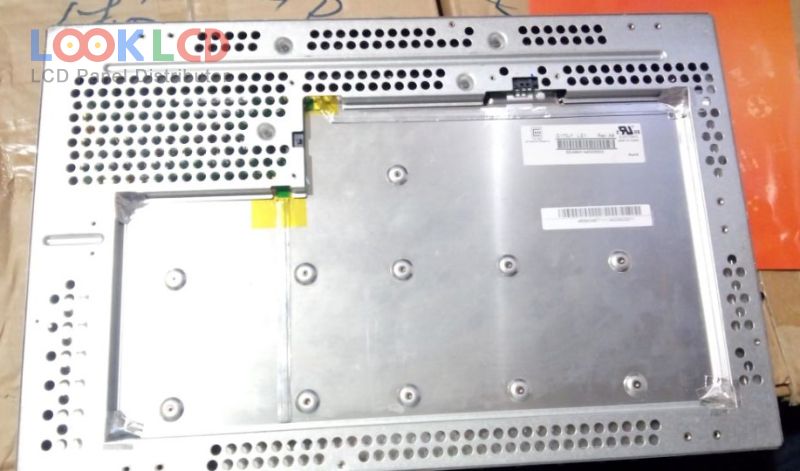

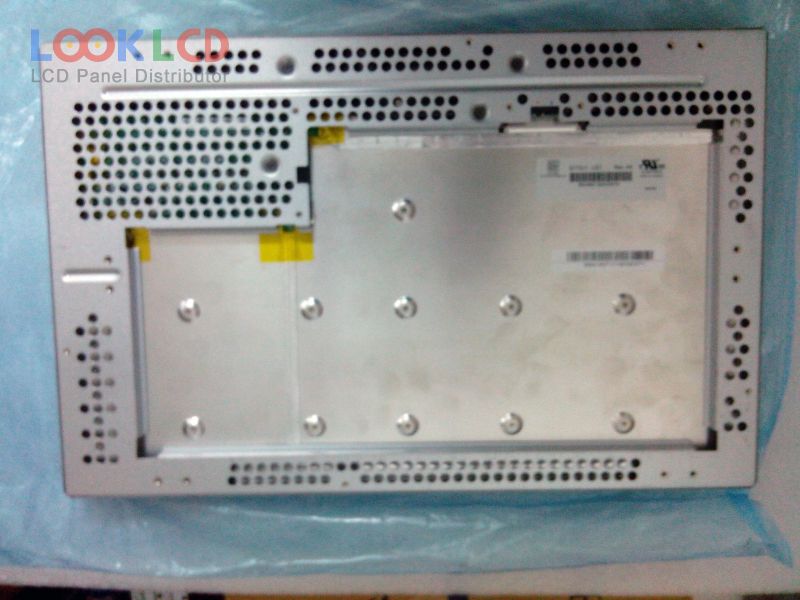

| PartNumber | G170J1-LE1 |
| Znamka | Innolux |
| Velikost | 17.0 |
| Aplikacija | IA |
| Resolucija | 1920×1200 |
| Sestava | LCM |
| Svetlost | 600 |
| CR | 2000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | INNOLUX |
| panelni model | G170J1-LE1 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 17.0 inch |
| resolucija | 1920(RGB)×1200 , WUXGA |
| način prikaza | Super MVA, Normally Black, Transmissive |
| aktivno območje | 365.76×228.6 mm |
| oris | 386.8×250.8×19 mm |
| površino | Glare (Haze 0%) |
| svetlost | 600 cd/m² (Typ.) |
| kontrastno razmerje | 2000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193170% |
| odzivni čas | 20/9 (Typ.)(Tr/Td) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (2 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | IA |
