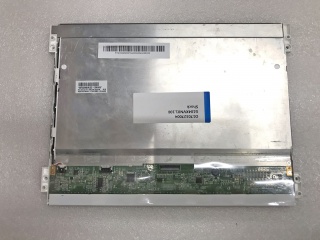

| PartNumber | G104XVN01.1 |
| Znamka | AUO |
| Velikost | 10.4 |
| Aplikacija | Industrial |
| Resolucija | 1024×768 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 3000:1 |
| Barve | 262K/16.2M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | G104XVN01.1 |
| velikost plošče | 10.4" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1024(RGB)×768, XGA, 123PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 210.4(W)×157.8(H) mm |
| odprtina okvirja | 215.4(W)×161.8(H) mm |
| velikost obrisa | 238.6(W)×175.8(H) ×7(D) mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | - |
| kontrastno razmerje | 3000:1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| način prikaza | AMVA3, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 20/10 (Typ.)(Tr/Td) |
| barve zaslona | 262K/16.2M |
| tip svetilke | WLED , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| teža plošče | - |
| aplikacija | Industrial |
| signalni vmesnik | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
