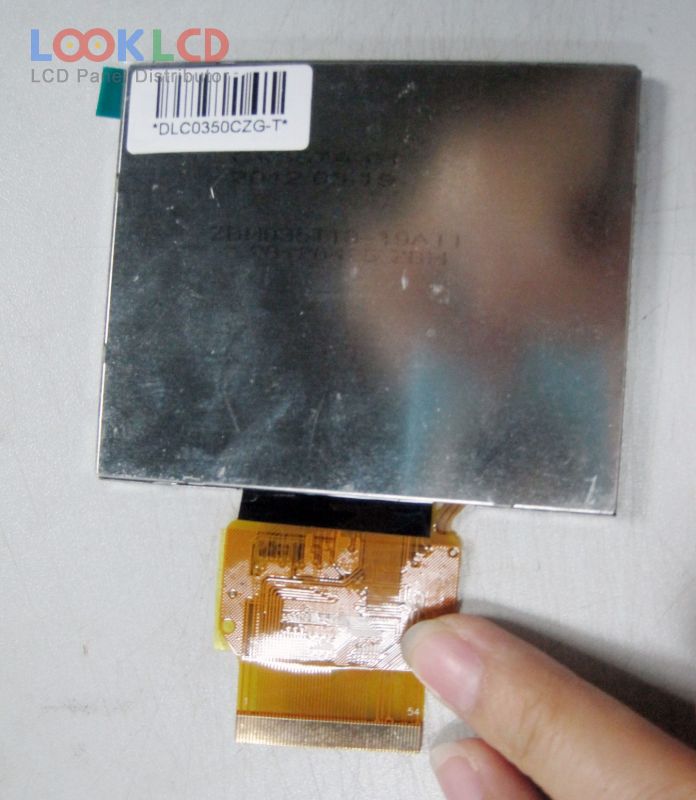

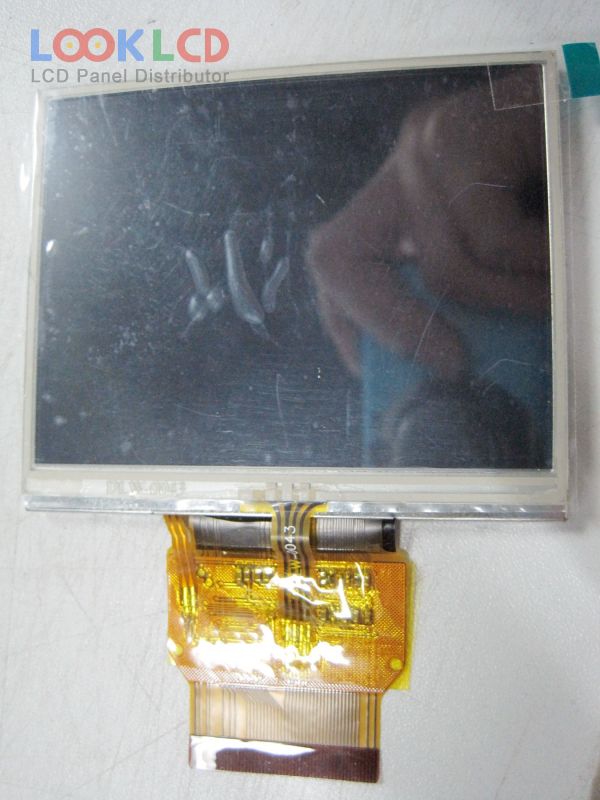

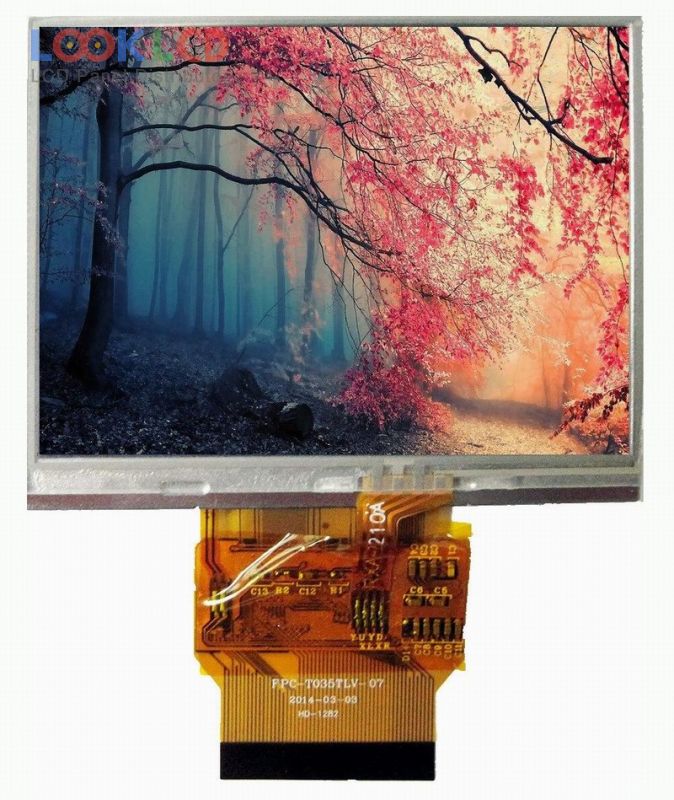

| PartNumber | DLC0350CZG-T |
| Znamka | Other |
| Velikost | 3.5 |
| Aplikacija | DSC |
| Resolucija | 320×240 |
| Sestava | LCM |
| Svetlost | 260 |
| CR | 370:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | Parallel/Serial |
| znamka plošče | DLC |
| panelni model | DLC0350CZG-T |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 3.5 inch |
| resolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 70.08×53.56 mm |
| oris | 76.9×64×4.45 mm |
| površino | |
| svetlost | 260 cd/m² (Typ.) |
| kontrastno razmerje | 370:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193155% |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6S1PWLEDWithout Driver |
| signalni vmesnik | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | DSC |
