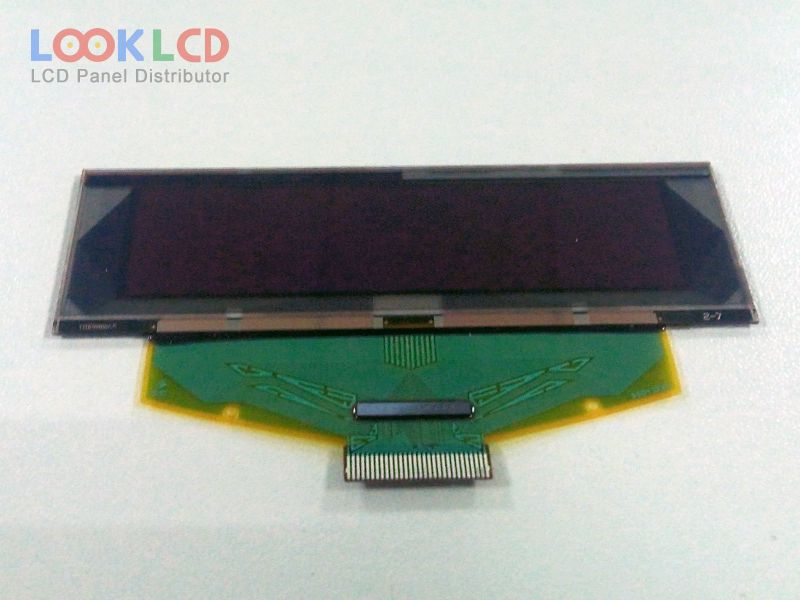

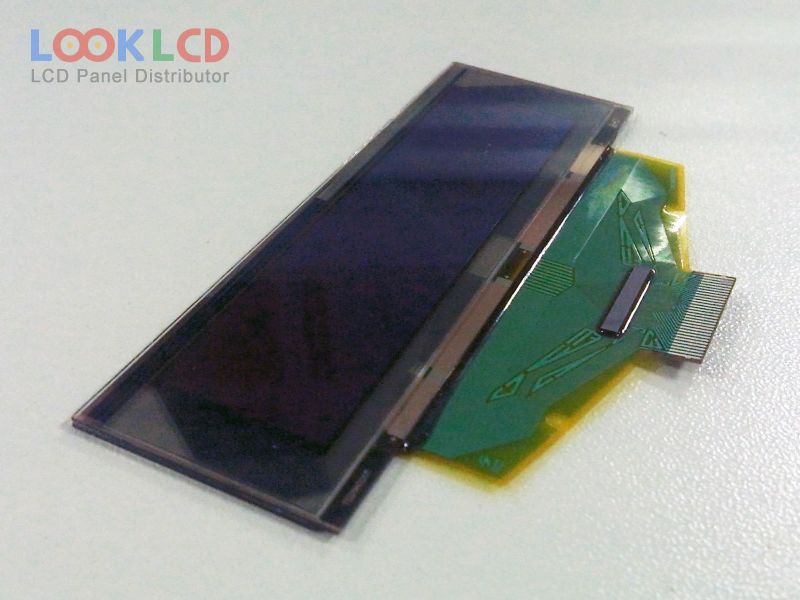

| PartNumber | DLC0270CUOF |
| Znamka | Other |
| Velikost | 2.7 |
| Aplikacija | |
| Resolucija | 256×64 |
| Sestava | OLED |
| Svetlost | 100 |
| CR | 10000:1 |
| Barve | Mono(White) |
| Osvetlitev ozadja | self |
| Vmesnik | CPU/SPI |
| znamka plošče | DLC |
| panelni model | DLC0270CUOF 1 Compatible model |
| vrsta plošče | PM-OLED , OLED |
| velikost plošče | 2.7 inch |
| resolucija | 256×64 |
| aktivno območje | 66.53×16.61 mm |
| oris | 82×25.5×1.6 mm |
| površino | |
| svetlost | 100 cd/m² (Typ.) |
| kontrastno razmerje | 10000 : 1 (Min.) |
| barve zaslona | Mono(White) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 100Hz |

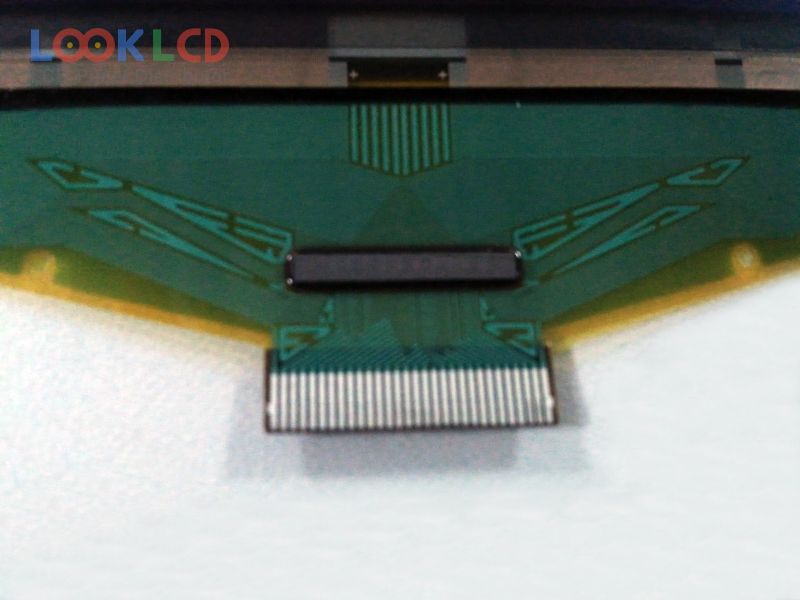

| voznik ic | COF Built-in SSD1322UR1 |
| signalni vmesnik | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
