| PartNumber | COM104T9M15ERS |
| Znamka | Ortustech |
| Velikost | 10.4 |
| Aplikacija | Industrial |
| Resolucija | 800×600 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka plošče | Ortustech |
| velikost plošče | 10.4" |
| resolucija | 800(RGB)×600, SVGA, 96PPI |

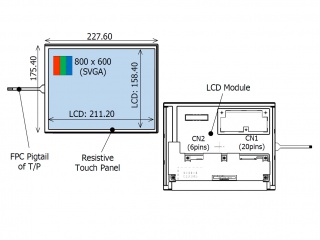

| prikazno območje | 211.2(W)×158.4(H) mm |
| velikost obrisa | 227.6(W)×175.4(H) mm |
| svetlost | 560 cd/m² (Min.) |
| vidni kot | 85/85/85/85 (Min.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 262K/16.7M 50% NTSC |
| pogostost | 60Hz |
| utež | - |
| panelni model | COM104T9M15ERS |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | - |
| površino | - |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| način prikaza | FFS, Normally Black, Transmissive |
| odzivni čas | 40 (Max.)(Tr+Td) |
| tip svetilke | WLED , 70K hours , With LED Driver |
| zaslon na dotik | 4-wire Resistive Touch |
| aplikacija | Industrial |
| AA104VH01 | Mitsubishi | 10.4 | 640×480 |
| DLH1095 | LiteMax | 10.4 | 1024×768 |
| G104V1-T01 | Innolux | 10.4 | 640×480 |
| LB104S01-TL01 | LG Display | 10.4 | 800×600 |
| LM-CG53-22NDK | SANYO | 10.4 | 640×480 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| NL6448BC33-53 | NLT | 10.4 | 640×480 |
| NL6448BC33-64D | NLT | 10.4 | 640×480 |
| NL6448BC33-64R | NLT | 10.4 | 640×480 |
| TX26D203VM2BAA | KOE | 10.4 | 1024×768 |
