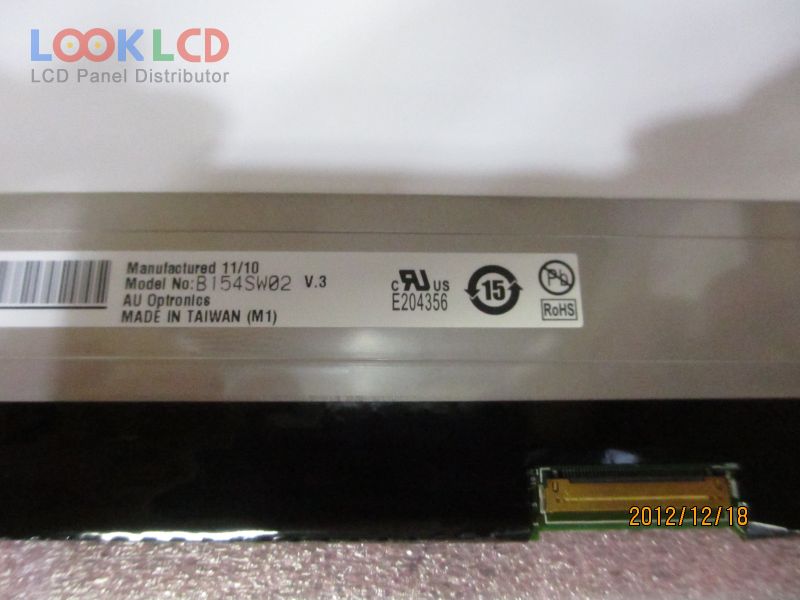

| PartNumber | B154SW02 V3 |
| Znamka | AUO |
| Velikost | 15.4 |
| Aplikacija | NBPC |
| Resolucija | 1680×1050 |
| Sestava | LCM |
| Svetlost | 220 |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | B154SW02 V3 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.4 inch |
| resolucija | 1680(RGB)×1050 , WSXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 331.38×207.11 mm |
| oris | 342.85×229.99×4.03 mm |
| slog oblike | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površino | Antiglare, Hard coating (2H) |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193172% |
| odzivni čas | 12/4 (Typ.)(Tr/Td) |
| vidni kot | 35/35/30/30 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6 stringsWLEDWithout Driver |
| signalni vmesnik | LVDS (2 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
