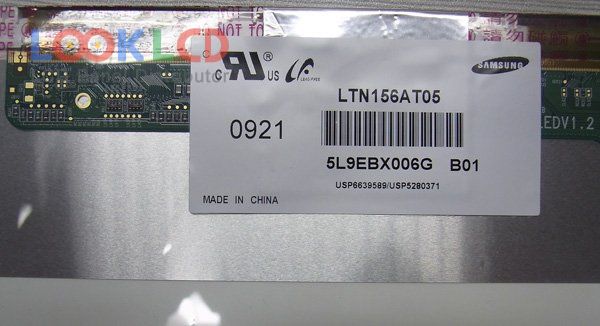

| PartNumber | LTN156AT05-B01 |
| Znamka | Samsung |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | |
| CR | |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTN156AT05-B01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 344.232×193.536 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | |
| svetlost | |
| kontrastno razmerje | |
| barve zaslona | 262K (6-bit) |
| odzivni čas | |
| vidni kot | |
| pogostost | 60Hz |
| tip svetilke | WLED |
| signalni vmesnik | LVDS (1 ch, 6-bit) |
| aplikacija | NBPC |
