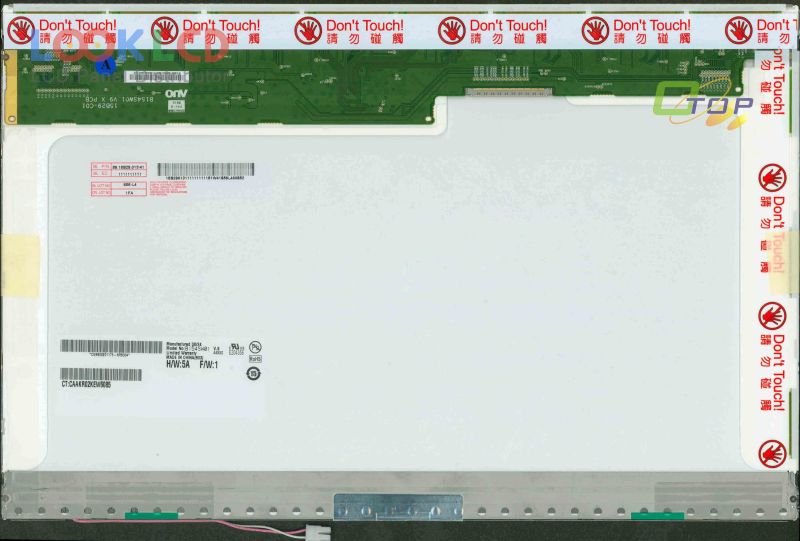

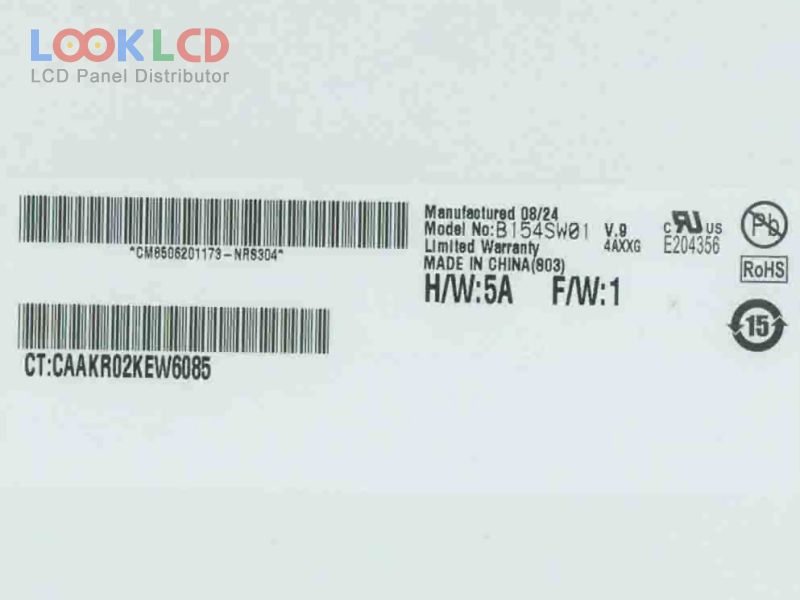

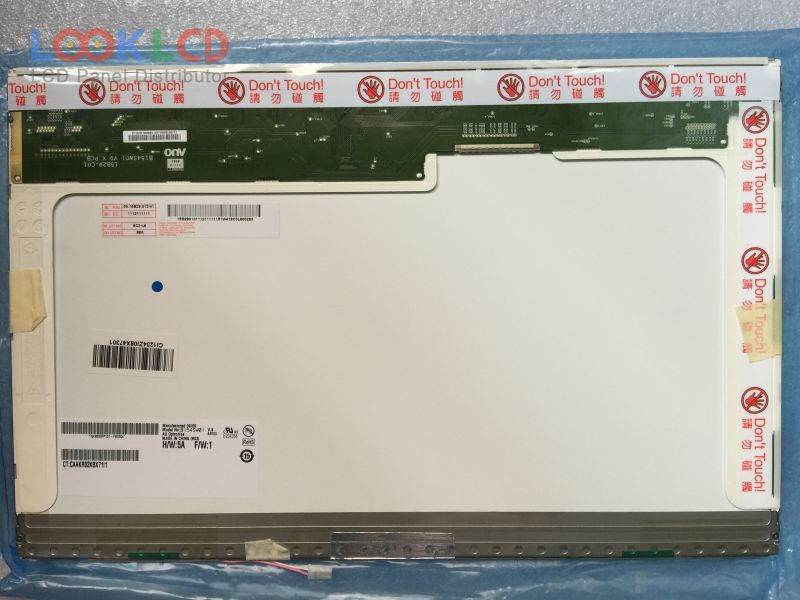

| PartNumber | B154SW01 V9 |
| Znamka | AUO |
| Velikost | 15.4 |
| Aplikacija | NBPC |
| Resolucija | 1680×1050 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 400:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | B154SW01 V9 9 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.4 inch |
| resolucija | 1680(RGB)×1050 , WSXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 331.38×207.11 mm |
| oris | 344×222×6.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare, Hard coating (2H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 8 (Typ.)(Tr+Td) |
| vidni kot | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (2 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
