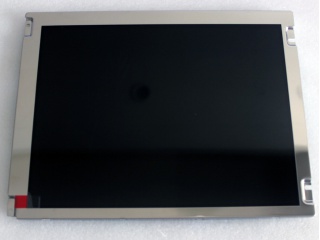

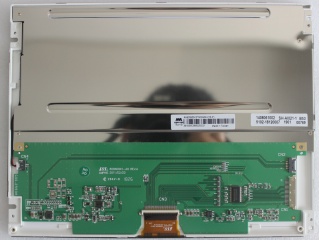

| PartNumber | AM-800600K2TMQW-04H |
| Znamka | AMPIRE |
| Velikost | 10.4 |
| Aplikacija | Industrial |
| Resolucija | 800×600 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AMPIRE |
| velikost plošče | 10.4" |
| resolucija | 800(RGB)×600, SVGA, 96PPI |
| prikazno območje | 211.2(W)×158.4(H) mm |
| velikost obrisa | 243(W)×185.6(H) mm |
| svetlost | 500 cd/m² (Typ.) |
| vidni kot | 70/70/50/60 (Typ.)(CR≥10) |
| najboljši pogled na | 6 o'clock |
| barve zaslona | 262K 50% NTSC |
| pogostost | 60Hz |
| teža plošče | - |
| signalni vmesnik | LVDS (1 ch, 6-bit) , 20 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -35 ~ 85 °C |
| panelni model | AM-800600K2TMQW-04H |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 214.8(W)×162.7(H) mm |
| površino | - |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| način prikaza | TN, Normally White, Transmissive |
| odzivni čas | 5/15 (Typ.)(Tr/Td) |
| tip svetilke | WLED , 30K hours , With LED Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial |
