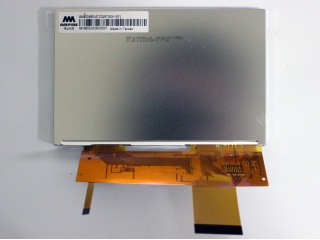

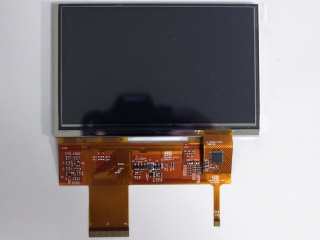

| PartNumber | AM-800480L6TZQW-TN0H-I |
| Znamka | AMPIRE |
| Velikost | 5.0 |
| Aplikacija | Industrial |
| Resolucija | 800×480 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 250:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 3S4P |
| Vmesnik | Parallel |
| proizvajalec | AMPIRE |
| ime modela | AM-800480L6TZQW-TN0H-I |
| velikost zaslona | 5.0 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 800(RGB)×480 (WVGA) 188PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 108 × 64.8 (H×V) |
| obris (mm) | 118.5 × 77.1 × 6.44 (H×V×D) |
| površina okvirja (mm) | 110.6 × 67.4 (H×V) |
| zdravljenje | - |
| svetilnost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 250 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 15/35 (Typ.)(Tr/Td) ms |
| dober pogled na | Symmetry |
| način dela | Normally Black, Transmissive |
| barvna globina | 16.7M 52% NTSC |
| osvetlitev ozadja | 3S4P WLED , 30K hours , No Driver |
| masa | - |
| uporablja za | Industrial |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | PCAP |
| vrsto signala | Parallel RGB (1 ch, 8-bit) , FPC 45 pins |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AMS495QA01 | Samsung | 5.0 | 960×544 |
| CLAF050LN41 TXX | CPT | 5.0 | 540×960 |
| EE050NA-04A | Innolux | 5.0 | 640×480 |
| LM050QC1T01 | SHARP | 5.0 | 320×240 |
| LMS501KF03 | Samsung | 5.0 | 480×800 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| LQ5AW136T | SHARP | 5.0 | 320×234 |
| LS050T1SX01 | SHARP | 5.0 | 1080×1920 |
| TFD50W72MS | TOSHIBA | 5.0 |
