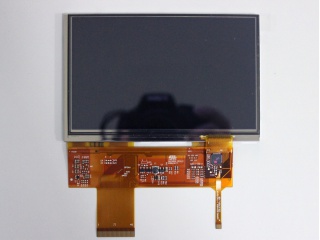

| PartNumber | AM-800480L1TMQW-TN0H |
| Znamka | AMPIRE |
| Velikost | 5.0 |
| Aplikacija | Industrial |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 250:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | Parallel |
| znamka | AMPIRE |
| model | AM-800480L1TMQW-TN0H |
| velikost diagonale | 5.0 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 800(RGB)×480 [WVGA] 188PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 108(H)×64.8(V) mm |
| obris dim. | 118.5(H)×77.1(V) ×6.66(D) mm |
| območje okvirja | 110.6(H)×67.4(V) mm |
| zdravljenje | Antiglare |
| svetilnost | 360 cd/m² (Typ.) |
| kontrastno razmerje | 250:1 (Typ.) (TM) |
| smer pogleda | 6 o'clock |
| odzivni čas | 15/35 (Typ.)(Tr/Td) |
| vidni kot | 70/70/70/50 (Typ.)(CR≥10) |
| način delovanja | TN, Normally White, Transmissive |
| podpira barvo | 16.7M 52% NTSC |
| Izvor svetlobe | WLED [3S6P] , W/O Driver |
| utež | - |
| namenjen za | Industrial |
| hitrost sličic | 60Hz |
| plošča na dotik | PCAP |
| tip vmesnika | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
