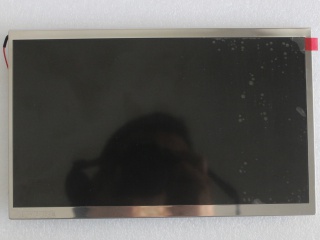

| PartNumber | AM-1024600L3HMQW-00H |
| Znamka | AMPIRE |
| Velikost | 10.1 |
| Aplikacija | Industrial Automotiv |
| Resolucija | 1024×600 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | AMPIRE |
| model | AM-1024600L3HMQW-00H |
| velikost diagonale | 10.1 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1024(RGB)×600 [WSVGA] 117PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 222.72(H)×125.28(V) mm |
| obris dim. | 235(H)×145.8(V) ×8.85(D) mm |
| območje okvirja | - |
| zdravljenje | Antiglare |
| svetilnost | 550 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| smer pogleda | - |
| odzivni čas | 4/12 (Typ.)(Tr/Td) |
| vidni kot | 70/70/70/50 (Typ.)(CR≥10) |
| način delovanja | TN, Normally White, Transmissive |
| podpira barvo | 262K 47% NTSC |
| Izvor svetlobe | WLED [6S6P] , 30K hours , With LED Driver |
| utež | TBD |
| namenjen za | Industrial Automotive Display |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | LVDS (1 ch, 8-bit) , 30 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
