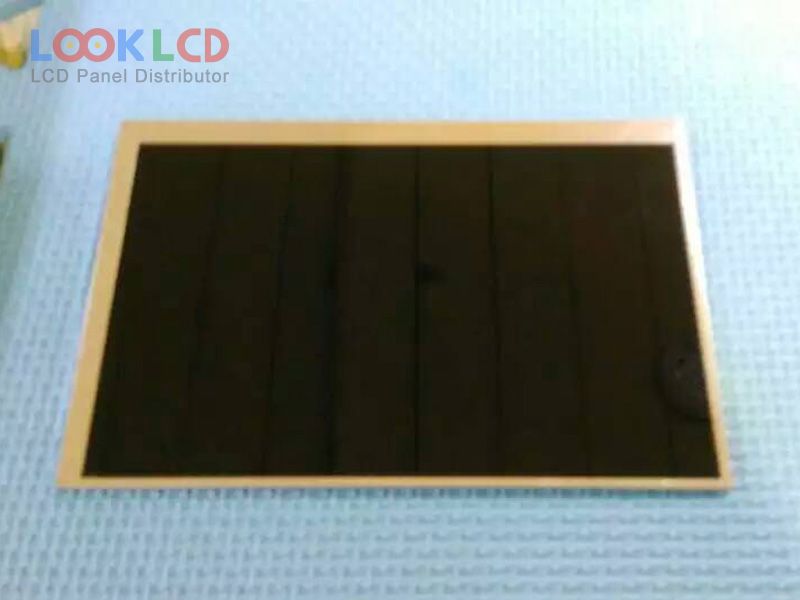

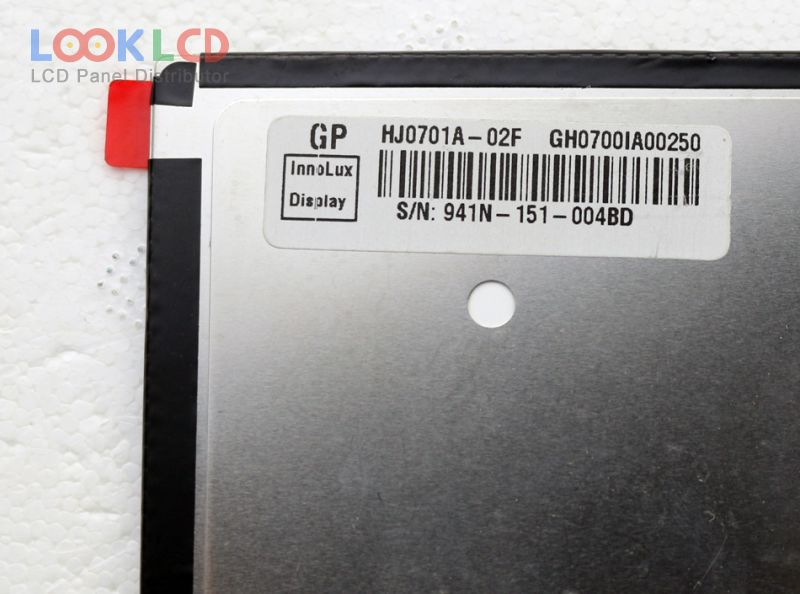

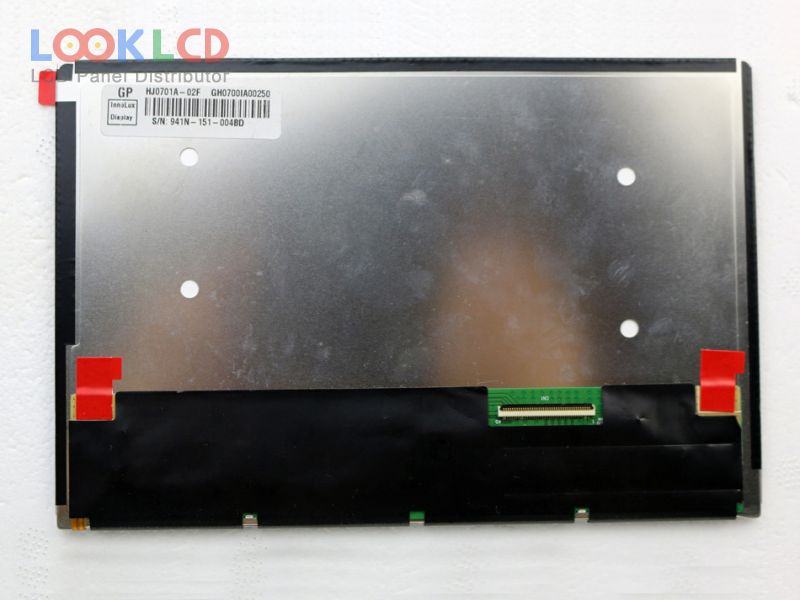

| PartNumber | HJ070IA-02F |
| Znamka | Innolux |
| Velikost | 7.0 |
| Aplikacija | UMPC |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CHIMEI INNOLUX |
| panelni model | HJ070IA-02F |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 149.76×93.6 mm |
| oris | 161.2×107.2×4.5 mm |
| površino | Hard coating |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193150% |
| odzivni čas | 15/20 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 40 pins |
| vhodna napetost | 3.3/9.74/22.7/-8V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikacija | UMPC |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| LD070WS2-SL01 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| LT080EE04000 | TOSHIBA | 8.0 | 1600×768 |
| LTL070AL01-L01 | Samsung | 7.0 | 1280×800 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
