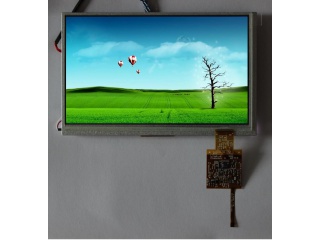

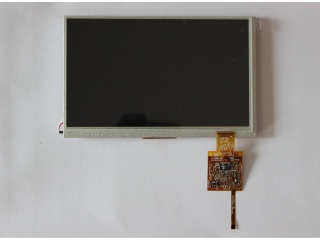

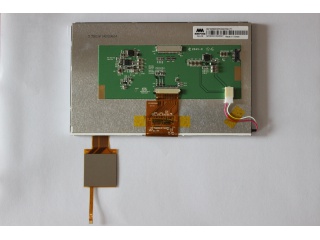

| PartNumber | AM-1024600K8TMQW-T09H |
| Znamka | AMPIRE |
| Velikost | 7.0 |
| Aplikacija | Industrial |
| Resolucija | 1024×600 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 700:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 5S3P |
| Vmesnik | |
| proizvajalec | AMPIRE |
| ime modela | AM-1024600K8TMQW-T09H |
| velikost zaslona | 7.0 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 1024(RGB)×600 (WSVGA) 169PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 153.6 × 90 (H×V) |
| obris (mm) | 165.5 × 104.4 × 10.77 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Glare (Haze 0%), Hard coating |
| svetilnost | 425 cd/m² (Typ.) |
| kontrastno razmerje | 700 : 1 (Typ.) (TM) |
| vidni kot | 75/75/70/75 (Typ.)(CR≥10) |
| odgovor | 20/20 (Typ.)(Tr/Td) ms |
| dober pogled na | 6 o'clock |
| način dela | TN, Normally White, Transmissive |
| barvna globina | 16.7M |
| osvetlitev ozadja | 5S3P WLED , 30K hours , With LED Driver |
| masa | TBD |
| uporablja za | Industrial |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | PCAP |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
