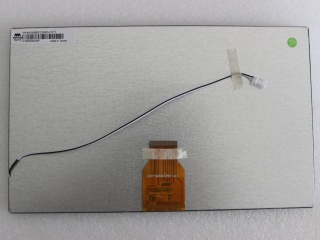

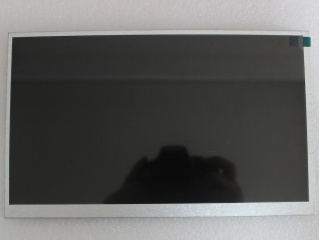

| PartNumber | AM-1024600ITZQW-00H |
| Znamka | AMPIRE |
| Velikost | 10.1 |
| Aplikacija | Industrial |
| Resolucija | 1024×600 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AMPIRE |
| panelni model | AM-1024600ITZQW-00H |
| velikost plošče | 10.1" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1024(RGB)×600, WSVGA, 117PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 222.72(W)×125.28(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 234.9(W)×143(H) ×4.9(D) mm |
| površino | Antiglare, Hard coating |
| svetlost | 550 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| način prikaza | IPS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 12/28 (Typ.)(Tr/Td) |
| barve zaslona | 262K/16.7M 70% NTSC |
| tip svetilke | WLED , 50K hours , Without Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| teža plošče | - |
| aplikacija | Industrial |
| signalni vmesnik | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| vhodna napetost | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| okolju | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
