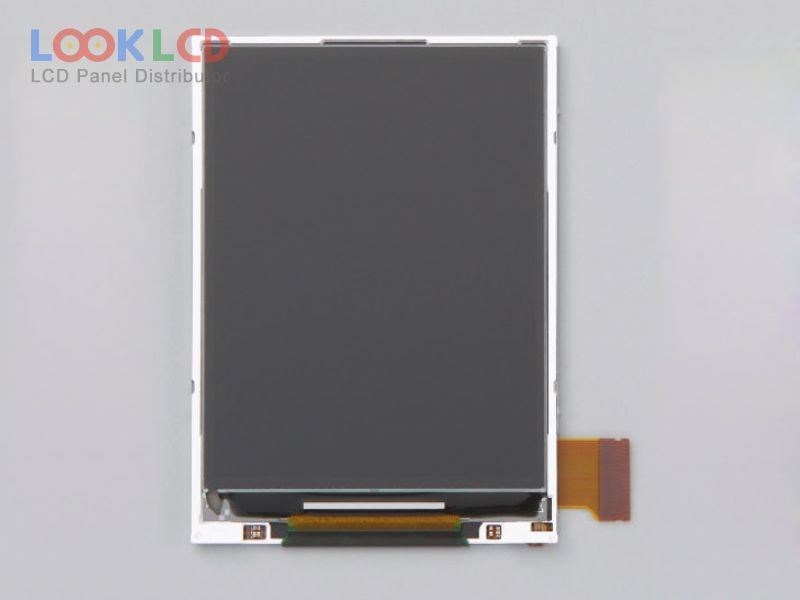

| PartNumber | 28QVF2H |
| Znamka | SII |
| Velikost | 2.8 |
| Aplikacija | HHP |
| Resolucija | 240×320 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SII |
| panelni model | 28QVF2H |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 2.8 inch |
| resolucija | 240(RGB)×320 , QVGA |
| način prikaza | FFS, Normally Black, Transmissive |
| aktivno območje | 43.2×57.6 mm |
| oris | 49×69 mm |
| površino | Clear, Hard coating |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193172% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 4S1PWLED |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit) + SPI, 35 pins |
| vhodna napetost | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| aplikacija | HHP |
