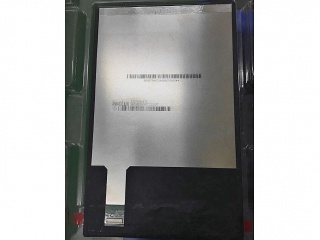

| PartNumber | ZJ070IA-17D |
| Znamka | Innolux |
| Velikost | 7.0 |
| Aplikacija | Pad & Tablet |
| Resolucija | 800×1280 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 10S2P |
| Vmesnik | MIPI |
| znamka plošče | Innolux |
| velikost plošče | 7.0" |
| resolucija | 800(RGB)×1280, WXGA, 215PPI |
| prikazno območje | 94.2(W)×150.72(H) mm |
| velikost obrisa | 103.5(W)×162.22(H) ×4.51(D) mm |
| svetlost | 500 cd/m² (Typ.) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 16.7M |
| pogostost | 60Hz |
| teža plošče | 87.0g (Max.) |
| signalni vmesnik | MIPI (4 data lanes) , 31 pins Connector |
| vhodna napetost | 1.8/3.3V (Typ.)(VDD/VDDIO) |
| okolju | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| panelni model | ZJ070IA-17D |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 97.35(W)×153.82(H) mm |
| površino | Glare (Haze 0%), Hard coating (3H) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| način prikaza | AAS, Normally Black, Transmissive |
| odzivni čas | 11/9 (Typ.)(Tr/Td) |
| tip svetilke | 10S2P WLED , 15K hours , Without Driver |
| zaslon na dotik | Without |
| aplikacija | Pad & Tablet |
