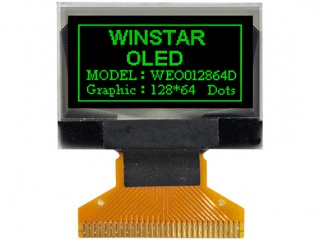

| PartNumber | WEO012864DG |
| Znamka | Winstar |
| Velikost | 0.96 |
| Aplikacija | Handheld & PDA Healt |
| Resolucija | 128×64 |
| Sestava | OLED , PM-OLED |
| Svetlost | |
| CR | |
| Barve | Mono(Green) |
| Osvetlitev ozadja | self |
| Vmesnik | 8-bit |
| proizvajalec | Winstar |
| velikost zaslona | 0.96 inch |
| število slikovnih pik | 128×64 149PPI |
| aktivna površina (mm) | 21.738 × 10.858 (H×V) |
| površina okvirja (mm) | 23.938 × 12.058 (H×V) |
| vidni kot | - |
| dober pogled na | Symmetry |
| barvna globina | Mono(Green) |
| masa | - |
| hitrost osveževanja | - |
| seznam gonilnikov ic | Built-in COG SSD1306BZ |
| vrsto signala | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| napajanje z napetostjo | 3.0V (Typ.) |
| ime modela | WEO012864DG |
| vrsto zaslona | OLED , PM-OLED |
| ureditev | Rectangle |
| obris (mm) | 26.7 × 19.26 × 1.81 (H×V×D) |
| zdravljenje | - |
| odgovor | - |
| način dela | - |
| osvetlitev ozadja | self |
| uporablja za | Handheld & PDA Healthcare Instruments & Meters |
| zaslon na dotik | Without |
