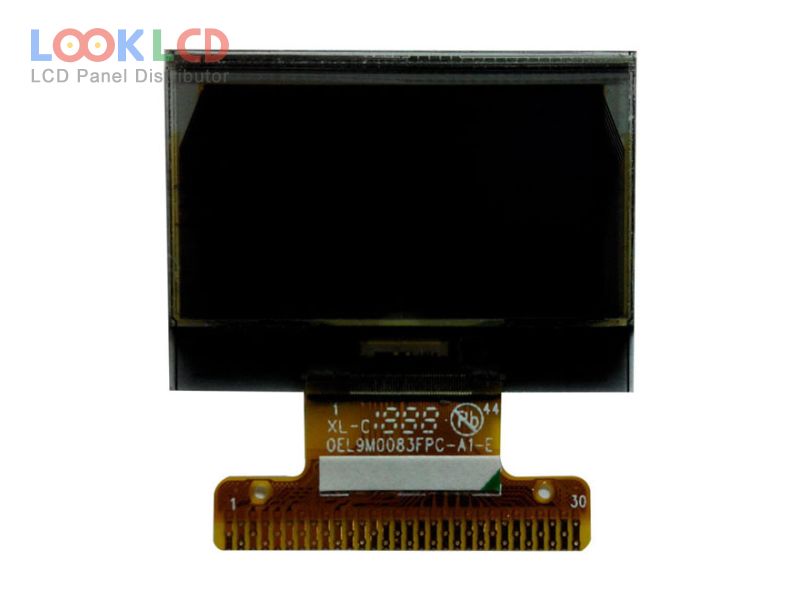

| PartNumber | OEL9M0083-R-E |
| Znamka | Other |
| Velikost | 0.96 |
| Aplikacija | |
| Resolucija | 128×64 |
| Sestava | OLED |
| Svetlost | |
| CR | 10000:1 |
| Barve | Mono(Red) |
| Osvetlitev ozadja | self |
| Vmesnik | CPU/SPI/I²C |
| znamka plošče | TRULY |
| panelni model | OEL9M0083-R-E |
| vrsta plošče | PM-OLED , OLED |
| velikost plošče | 0.96 inch |
| resolucija | 128×64 |
| aktivno območje | 21.74×11.175 mm |
| oris | 26.7×19.26×1.65 mm |
| površino | |
| svetlost | |
| kontrastno razmerje | 10000 : 1 (Min.) |
| barve zaslona | Mono(Red) (1-bit) |
| vidni kot | 80/80/80/80 (Min.)(L/R/U/D) |
| pogostost | 100Hz |
| voznik ic | COG Built-in SH1106G |
| signalni vmesnik | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
