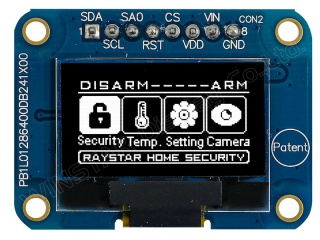

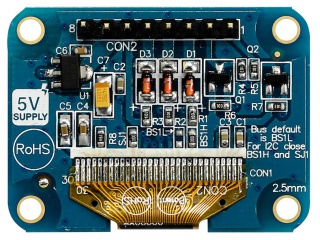

| PartNumber | WEA012864DWPP3N00001 |
| Znamka | Winstar |
| Velikost | 0.96 |
| Aplikacija | Instruments & Me |
| Resolucija | 128×64 |
| Sestava | PM-OLED, OLED |
| Svetlost | |
| CR | |
| Barve | Mono(White) |
| Osvetlitev ozadja | self |
| Vmesnik | 4-wire |
| znamka | Winstar |
| model | WEA012864DWPP3N00001 |
| velikost diagonale | 0.96 inch |
| vrsta | PM-OLED, OLED |
| slikovnih pik | 128×64 149PPI |
| konfiguracijo | Rectangle |
| aktivno območje | 21.74(H)×10.86(V) mm |
| obris dim. | 38(H)×28.5(V) ×4.37(D) mm |
| območje okvirja | 23.94(H)×12.06(V) mm |
| zdravljenje | - |
| smer pogleda | Symmetry |
| odzivni čas | - |
| vidni kot | - |
| način delovanja | - |
| podpira barvo | Mono(White) |
| Izvor svetlobe | self |
| utež | - |
| namenjen za | Instruments & Meters |
| hitrost sličic | - |
| plošča na dotik | Without |
| detajl d-ic | COG Built-in SSD1306BZ |
| tip vmesnika | 4-wire SPI, I²C , 8 pins PIN |
| napajanje | 3.3/5.0/7.5V (Typ.) |
| okolju | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |
| IROP018-010-0128064-W | Other | 0.96 | 128×64 |
| L3P10Y-81G00 | Epson | 0.96 | 1400×1050 |
| OEL9M0083-G-E | Other | 0.96 | 128×64 |
| OEL9M0083-R-E | Other | 0.96 | 128×64 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| RGS10096096WR001 | RiTdisplay | 0.96 | 96×96 |
| RGS10128064WR010 | RiTdisplay | 0.96 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
