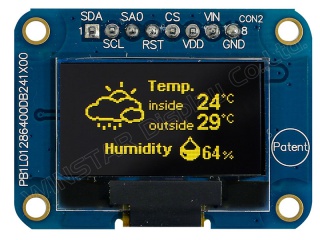

| PartNumber | WEA012864DLPP3N00001 |
| Znamka | Winstar |
| Velikost | 0.96 |
| Aplikacija | Instruments & Me |
| Resolucija | 128×64 |
| Sestava | PM-OLED, OLED |
| Svetlost | |
| CR | |
| Barve | Mono(Yellow) |
| Osvetlitev ozadja | self |
| Vmesnik | 4-wire |
| znamka plošče | Winstar |
| panelni model | WEA012864DLPP3N00001 |
| velikost plošče | 0.96" |
| vrsta plošče | PM-OLED, OLED |
| resolucija | 128×64, 149PPI |
| slikovnih pik | Rectangle |
| prikazno območje | 21.74(W)×10.86(H) mm |
| odprtina okvirja | 23.94(W)×12.06(H) mm |
| velikost obrisa | 38(W)×28.5(H) ×4.37(D) mm |
| površino | - |
| vidni kot | - |
| način prikaza | - |
| najboljši pogled na | Symmetry |
| odzivni čas | - |
| barve zaslona | Mono(Yellow) |
| tip svetilke | self |
| pogostost | - |
| zaslon na dotik | Without |
| voznik ic | COG Built-in SSD1306BZ |
| teža plošče | - |
| aplikacija | Instruments & Meters |
| signalni vmesnik | 4-wire SPI, I²C , 8 pins PIN |
| vhodna napetost | 3.3/5.0/7.5V (Typ.) |
| okolju | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
