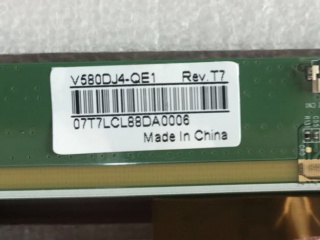

| PartNumber | V580DJ4-QE1 Rev.T7 |
| Znamka | Innolux |
| Velikost | 58 |
| Aplikacija | TV Sets |
| Resolucija | 3840×2160 |
| Sestava | a-Si TFT-LCD , CELL |
| Svetlost | |
| CR | 5000:1 |
| Barve | 1.07B |
| Osvetlitev ozadja | No |
| Vmesnik | |
| znamka | Innolux |
| velikost diagonale | 58 inch |
| slikovnih pik | 3840(RGB)×2160 [UHD] 76PPI |
| aktivno območje | 1270.08(H)×721.44(V) mm |
| svetilnost | 0 cd/m² |
| smer pogleda | Symmetry |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| podpira barvo | 1.07B 85% NTSC |
| utež | - |
| hitrost sličic | 60Hz |
| model | V580DJ4-QE1 Rev.T7 |
| vrsta | a-Si TFT-LCD , CELL |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | - |
| kontrastno razmerje | 5000:1 (Typ.) (TM) |
| odzivni čas | 9.5 (Typ.)(G to G) |
| način delovanja | Super MVA, Normally Black, Transmissive |
| Izvor svetlobe | No B/L |
| namenjen za | TV Sets |
| plošča na dotik | Without |
