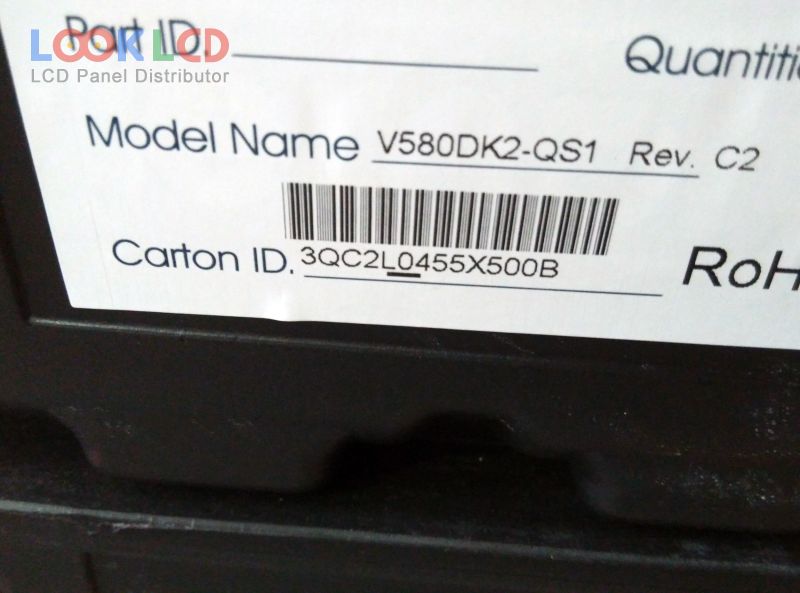

| PartNumber | V580DK2-QS1 |
| Znamka | Innolux |
| Velikost | 58 |
| Aplikacija | LCTV |
| Resolucija | 3840×2160 |
| Sestava | CELL |
| Svetlost | 0 |
| CR | 4000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No B/L |
| Vmesnik | V-by-One |
| znamka plošče | CHIMEI INNOLUX |
| panelni model | V580DK2-QS1 |
| vrsta plošče | a-Si TFT-LCD , CELL |
| velikost plošče | 58 inch |
| resolucija | 3840(RGB)×2160 , UHD |
| način prikaza | Super MVA, Normally Black, Transmissive |
| aktivno območje | 1270.08×721.44 mm |
| oris | 1282.88×734.44 mm |
| površino | Antiglare (Haze 1%) |
| globina stekla | 0.70+0.70 mm |
| transmisivnost | 4.3% (Typ.)(with Polarizer) |
| kontrastno razmerje | 4000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193172% |
| odzivni čas | 9.5 (Typ.)(G to G) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| pogostost | 120Hz |
| signalni vmesnik | V-by-One 8 lane, 51 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | LCTV |
