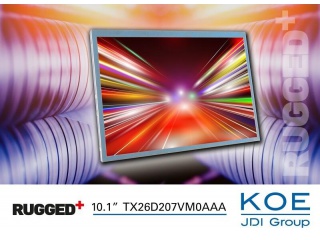

| PartNumber | TX26D207VM0AAA |
| Znamka | KOE |
| Velikost | 10.1 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 1280×800 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | KOE |
| velikost diagonale | 10.1 inch |
| slikovnih pik | 1280(RGB)×800 [WXGA] 149PPI |
| aktivno območje | 217.344(H)×135.84(V) mm |
| območje okvirja | 220.344(H)×138.838(V) mm |
| svetilnost | 1000 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 65% NTSC |
| utež | 340g (Typ.) |
| hitrost sličic | 60Hz |
| tip vmesnika | LVDS (1 ch, 8-bit) , 20 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| model | TX26D207VM0AAA |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 231(H)×153.5(V) ×11.07(D) mm |
| zdravljenje | - |
| kontrastno razmerje | 1500:1 (Typ.) (TM) |
| odzivni čas | 25 (Max.)(Tr+Tf) |
| način delovanja | IPS, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 70K hours , With LED Driver |
| namenjen za | Industrial Outdoor High Brightness Automotive Display |
| plošča na dotik | Without |
