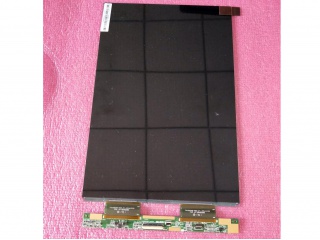

| PartNumber | TV106WAB-NS0 |
| Znamka | BOE |
| Velikost | 10.6 |
| Aplikacija | Pad & Tablet |
| Resolucija | 1280×1920 |
| Sestava | a-Si TFT-LCD, CELL |
| Svetlost | |
| CR | 900:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | |
| znamka | BOE |
| model | TV106WAB-NS0 |
| velikost diagonale | 10.6 inch |
| vrsta | a-Si TFT-LCD, CELL |
| slikovnih pik | 1280(RGB)×1920 218PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 148.992(H)×223.488(V) mm |
| obris dim. | 153.392(H)×232.688(V) ×0.79(D) mm |
| območje okvirja | - |
| zdravljenje | Hard coating (3H) |
| svetilnost | 0 cd/m² |
| kontrastno razmerje | 900:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način delovanja | ADS, Normally Black, Transmissive |
| debelina plošče | 0.25+0.25 mm |
| prepustnost | - |
| podpira barvo | 16.7M 71% NTSC |
| Izvor svetlobe | No B/L , W/O Driver |
| utež | 62.0g (Max.) |
| namenjen za | Pad & Tablet |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| AA106TA01 | Mitsubishi | 10.6 | 1280×768 |
| LQ106K1LA02 | SHARP | 10.6 | 1280×768 |
| LQ106K1LA05 | SHARP | 10.6 | 1280×768 |
| LTD106EWNN | TOSHIBA | 10.6 | 1280×768 |
| LTD106EXXF | TOSHIBA | 10.6 | 1280×768 |
| LTL106AL01-001 | Samsung | 10.6 | 1366×768 |
| LTL106AL01-002 | Samsung | 10.6 | 1366×768 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| NL12876AC18-03 | NLT | 10.6 | 1280×768 |
| NL12876AC18-03D | NLT | 10.6 | 1280×768 |
