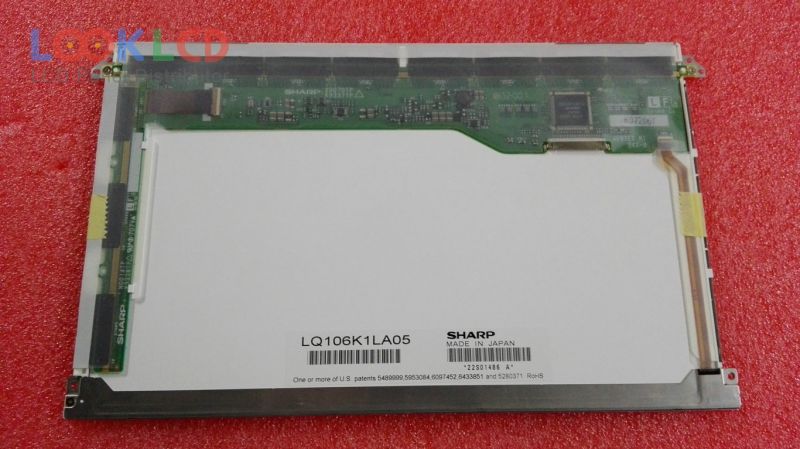

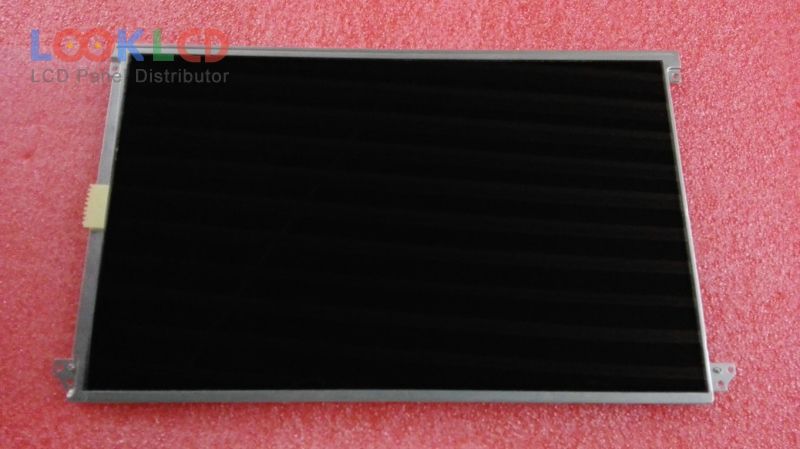

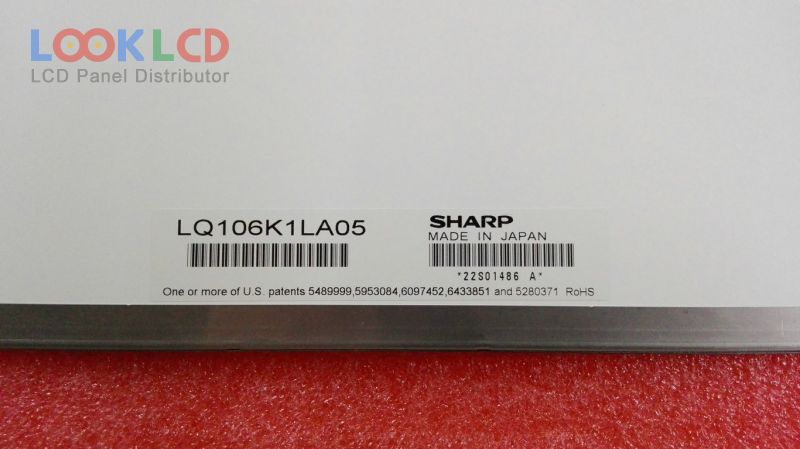

| PartNumber | LQ106K1LA05 |
| Znamka | SHARP |
| Velikost | 10.6 |
| Aplikacija | NBPC |
| Resolucija | 1280×768 |
| Sestava | LCM |
| Svetlost | 280 |
| CR | 350:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | SHARP |
| panelni model | LQ106K1LA05 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.6 inch |
| resolucija | 1280(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 230.4×138.24 mm |
| oris | 257.8×152×5 mm |
| površino | Glare (Haze 0%), Hard coating (2H), Antireflection |
| svetlost | 280 cd/m² (Typ.) |
| kontrastno razmerje | 350:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 9S5PWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
