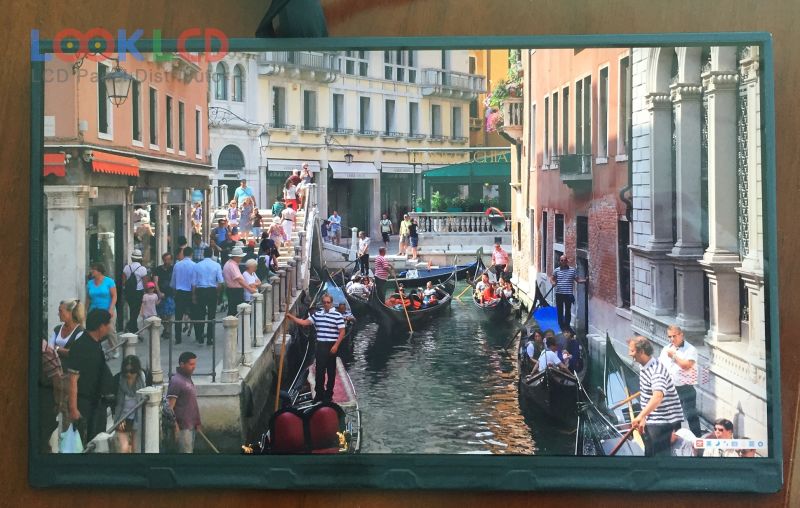

| PartNumber | TV101QUM-N00 |
| Znamka | BOE |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 3840×2160 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | BOE |
| panelni model | TV101QUM-N00 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 3840(RGB)×2160 , UHD |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno območje | 222.912×125.388 mm |
| oris | 231.6×140.9 mm |
| površino | |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 1500:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE1931100% |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8S6PWLEDWithout Driver |
| signalni vmesnik | eDP (4 Lanes), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
