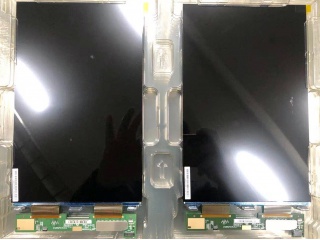

| PartNumber | TV101WUB-NV0 |
| Znamka | BOE |
| Velikost | 10.1 |
| Aplikacija | Pad & Tablet |
| Resolucija | 1200×1920 |
| Sestava | a-Si TFT-LCD, CELL |
| Svetlost | |
| CR | 900:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | MIPI |
| znamka | BOE |
| model | TV101WUB-NV0 |
| velikost diagonale | 10.1 inch |
| vrsta | a-Si TFT-LCD, CELL |
| slikovnih pik | 1200(RGB)×1920 [WUXGA] 225PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 135.36(H)×216.576(V) mm |
| obris dim. | 140.26(H)×225.346(V) ×0.8(D) mm |
| svetilnost | 0 cd/m² |
| kontrastno razmerje | 900:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| način delovanja | ADS, Normally Black, Transmissive |
| debelina plošče | 0.25+0.25 mm |
| prepustnost | 5.1% (Typ.)(with Polarizer) |
| podpira barvo | 16.7M 71% NTSC |
| Izvor svetlobe | No B/L |
| utež | - |
| namenjen za | Pad & Tablet |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |

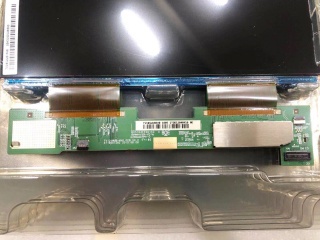

| detajl d-ic | COG Built-in 2 source chips |
| tip vmesnika | MIPI (4 data lanes) , 44 pins Connector |
| napajanje | 3.3/9.8/4.8V (Typ.)(VDDI/AVDD/HAVDD) |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
