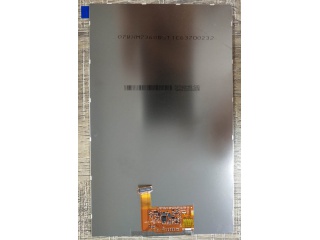

| PartNumber | TV070WXM-NS0 |
| Znamka | BOE |
| Velikost | 7.0 |
| Aplikacija | Pad & Tablet |
| Resolucija | 800×1280 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 900:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 5S4P |
| Vmesnik | MIPI |
| proizvajalec | BOE |
| ime modela | TV070WXM-NS0 |
| velikost zaslona | 7.0 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 800(RGB)×1280 (WXGA) 215PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 94.2 × 150.72 (H×V) |
| obris (mm) | 99.7 × 160.93 × 3.8 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Hard coating (3H), Antireflection |
| svetilnost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 900 : 1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| odgovor | 30 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | ADS, Normally Black, Transmissive |
| barvna globina | 16.7M 50% NTSC |
| osvetlitev ozadja | 5S4P WLED , 20K hours , No Driver |
| masa | 74.5g (Typ.) |
| uporablja za | Pad & Tablet |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | MIPI (4 data lanes) , 34 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 60 °C |
