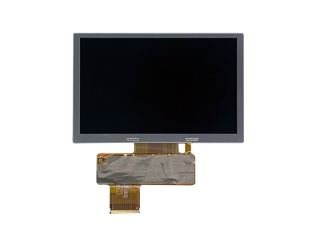

| PartNumber | TM050RDZG03-30 |
| Znamka | TIANMA |
| Velikost | 5.0 |
| Aplikacija | Industrial |
| Resolucija | 800×480 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 600:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 3S6P |
| Vmesnik | |
| proizvajalec | TIANMA |
| ime modela | TM050RDZG03-30 |
| velikost zaslona | 5.0 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 800(RGB)×480 (WVGA) 188PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 108 × 64.8 (H×V) |
| obris (mm) | 120.7 × 77.8 × 5.9 (H×V×D) |
| površina okvirja (mm) | 111.1 × 67.9 (H×V) |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 1000 cd/m² (Typ.) |
| kontrastno razmerje | 600 : 1 (Typ.) (TM) |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10) |
| odgovor | 20/30 (Typ./Max.)(Tr+Td) ms |
| dober pogled na | 12 o'clock |
| način dela | TN, Normally White, Transmissive |
| barvna globina | 16.7M 50% NTSC |
| osvetlitev ozadja | 3S6P WLED , 50K hours |
| masa | TBD |
| uporablja za | Industrial |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
