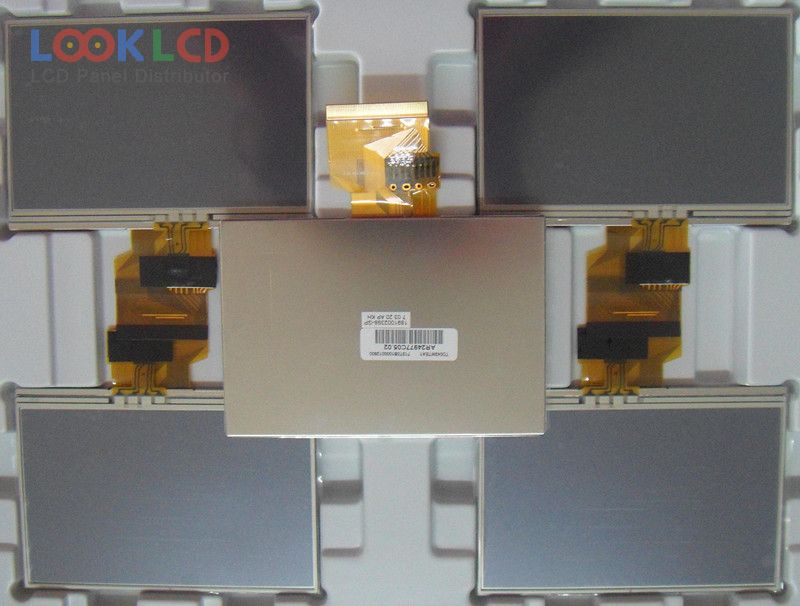

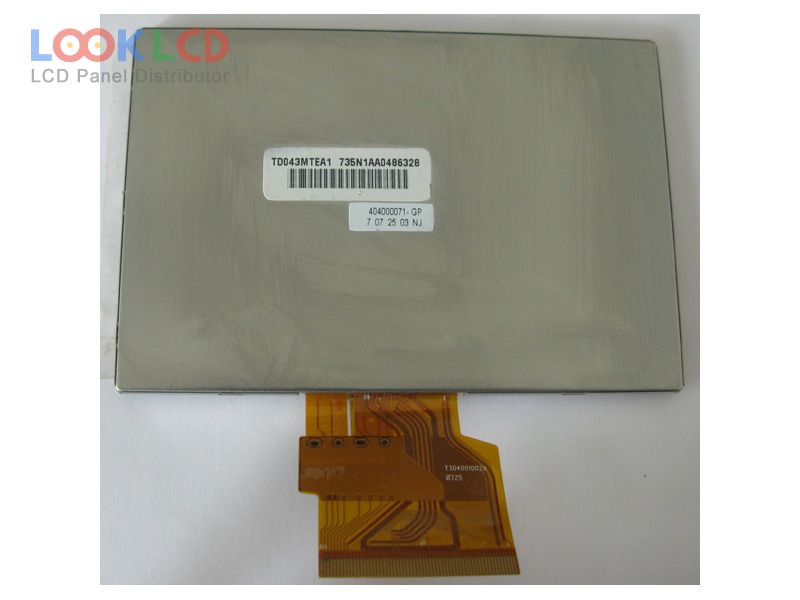

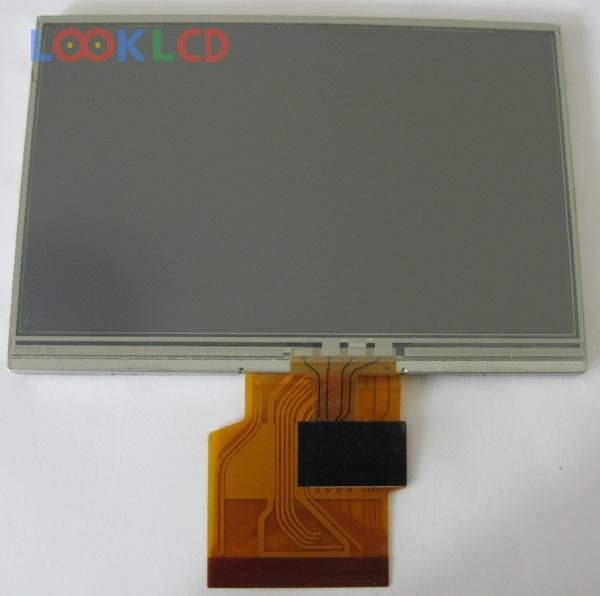

| PartNumber | TD043MTEA1 |
| Znamka | TPO |
| Velikost | 4.3 |
| Aplikacija | |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 400:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | TPO |
| panelni model | TD043MTEA1 |
| vrsta plošče | LTPS TFT-LCD , LCM |
| velikost plošče | 4.3 inch |
| resolucija | 800(RGB)×480 , WVGA |
| način prikaza | Normally Black, Transmissive |
| aktivno območje | 93.6×56.16 mm |
| oris | 100.6×68.45 mm |
| površino | |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8S1PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit), 60 pins |
| vhodna napetost | 3.3/5.0/-5V (Typ.)(VCC/VDDP/VDDN) |
