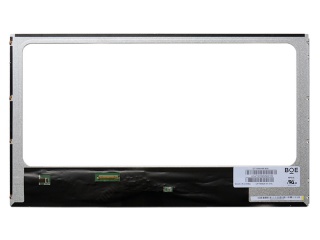

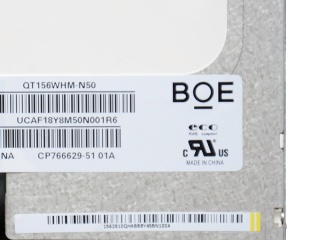

| PartNumber | QT156WHM-N50 |
| Znamka | BOE |
| Velikost | 15.6 |
| Aplikacija | Laptop Printer Home |
| Resolucija | 1366×768 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | BOE |
| velikost plošče | 15.6" |
| resolucija | 1366(RGB)×768, WXGA, 100PPI |
| prikazno območje | 344.232(W)×193.536(H) mm |
| svetlost | 200 cd/m² (Typ.) |
| vidni kot | 45/45/20/40 (Typ.)(CR≥10) |
| najboljši pogled na | 6 o'clock |
| barve zaslona | 262K 45% NTSC |
| pogostost | 60Hz |
| slog oblike | Wedge (PCBA Bent, T≥5.2mm) |
| signalni vmesnik | LVDS (1 ch, 6-bit) , 40 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| panelni model | QT156WHM-N50 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | - |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| način prikaza | TN, Normally White, Transmissive |
| odzivni čas | 12 (Typ.)(Tr+Td) |
| tip svetilke | WLED , 15K hours , With LED Driver |
| zaslon na dotik | Without |
| aplikacija | Laptop Printer Home Appliance |
