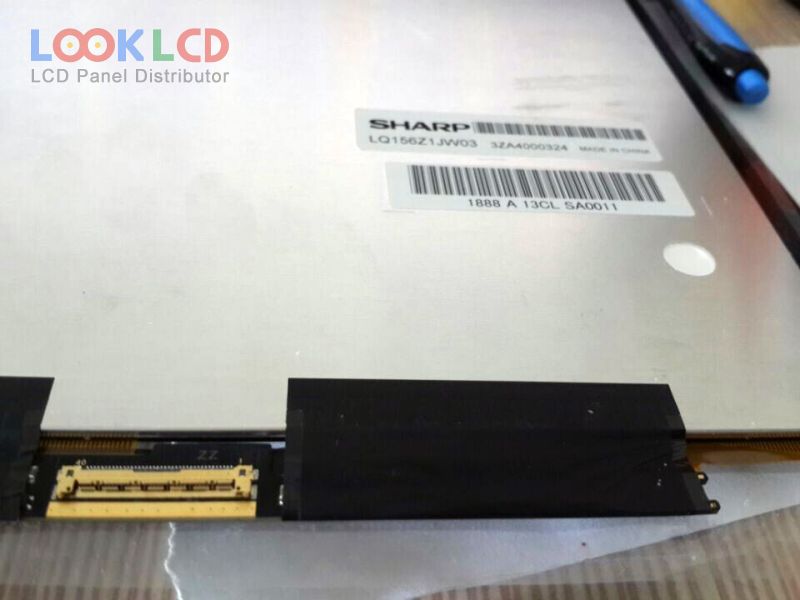

| PartNumber | LQ156Z1JW03 |
| Znamka | SHARP |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 3200×1800 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | SHARP |
| panelni model | LQ156Z1JW03 |
| vrsta plošče | IGZO TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 3200(RGB)×1800 , Quad-HD+ |
| način prikaza | New Mode2, Normally Black, Transmissive |
| aktivno območje | 345.6×194.4 mm |
| oris | 358.12×207.56×2.9 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Antiglare (Haze 42%) |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193172% |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (4 Lanes), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
