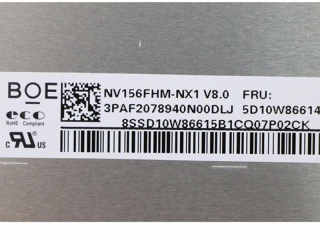

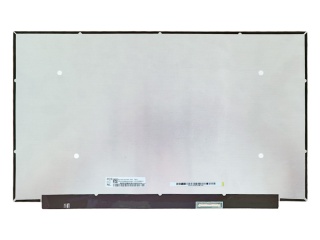

| PartNumber | NV156FHM-NX1 |
| Znamka | BOE |
| Velikost | 15.6 |
| Aplikacija | Laptop Gaming |
| Resolucija | 1920×1080 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka | BOE |
| model | NV156FHM-NX1 |
| velikost diagonale | 15.6 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1920(RGB)×1080 [FHD] 141PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 344.16(H)×193.59(V) mm |
| obris dim. | 350.66(H)×214.75(V) ×3.2(D) mm |
| območje okvirja | - |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 20 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način delovanja | ADS, Normally Black, Transmissive |
| podpira barvo | 16.7M 45% NTSC |
| Izvor svetlobe | WLED [11S4P] , 15K hours , With LED Driver |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| namenjen za | Laptop Gaming |
| hitrost sličic | 120Hz |
| plošča na dotik | Without |
| tip vmesnika | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB1 | LG Display | 15.6 | 1920×1080 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| NT156WHM-N10 | BOE | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
