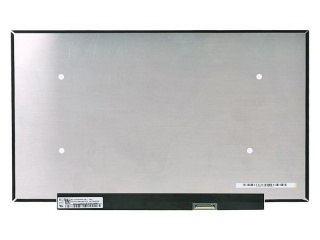

| PartNumber | NV140FHM-N4V |
| Znamka | BOE |
| Velikost | 14.0 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | 8S4P |
| Vmesnik | eDP |
| znamka plošče | BOE |
| velikost plošče | 14.0" |
| resolucija | 1920(RGB)×1080, FHD, 157PPI |
| prikazno območje | 309.31(W)×173.99(H) mm |
| velikost obrisa | 315.81(W)×195.5(H) ×3(D) mm |
| svetlost | 300 cd/m² (Typ.) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 16.2M 45% NTSC |
| pogostost | 60Hz |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| signalni vmesnik | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| panelni model | NV140FHM-N4V (BOE08D7) |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | - |
| površino | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| način prikaza | ADS, Normally Black, Transmissive |
| odzivni čas | 20 (Typ.)(Tr+Td) |
| tip svetilke | 8S4P WLED , 15K hours , With LED Driver |
| zaslon na dotik | Without |
| aplikacija | Laptop |
