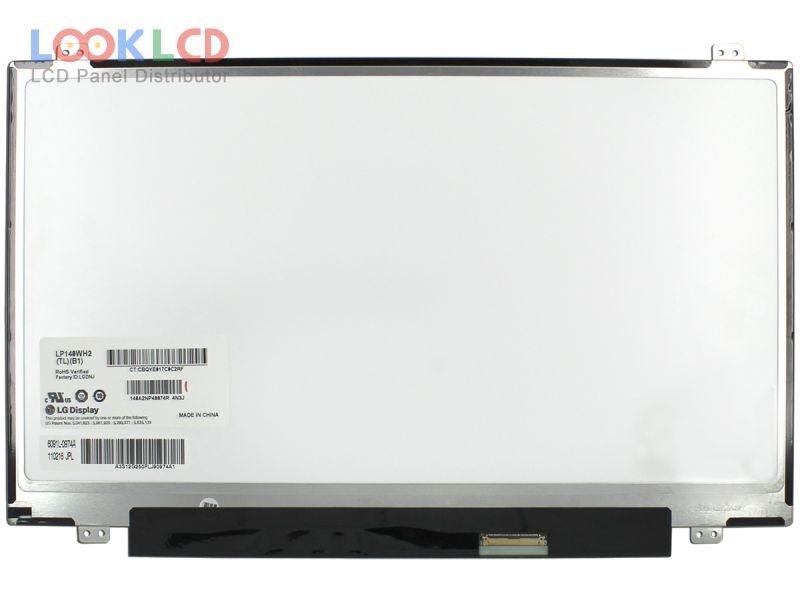

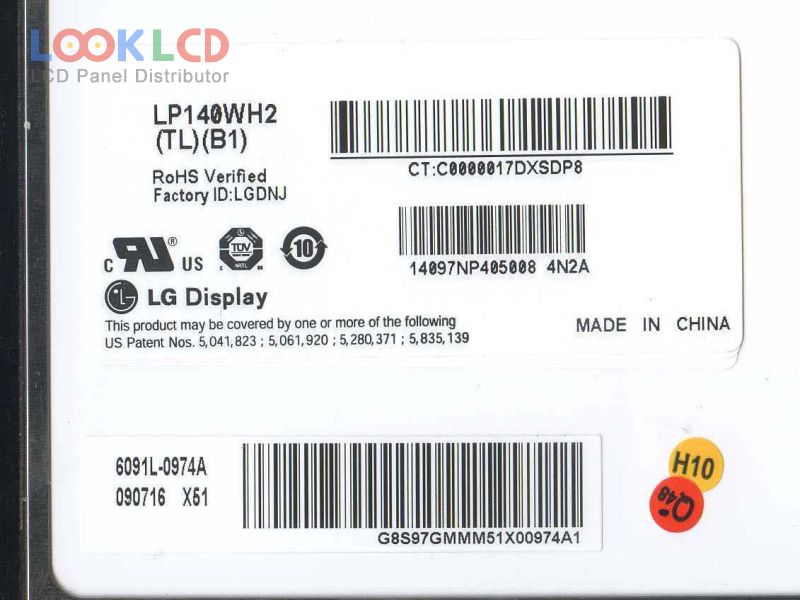

| PartNumber | LP140WH2-TLB1 |
| Znamka | LG Display |
| Velikost | 14.0 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 350:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | LG Display |
| panelni model | LP140WH2-TLB1 7 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 14.0 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 309.399×173.952 mm |
| oris | 320.4×205.1×3.6 mm |
| slog oblike | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 350:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 40/40/10/30 (MIn.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |

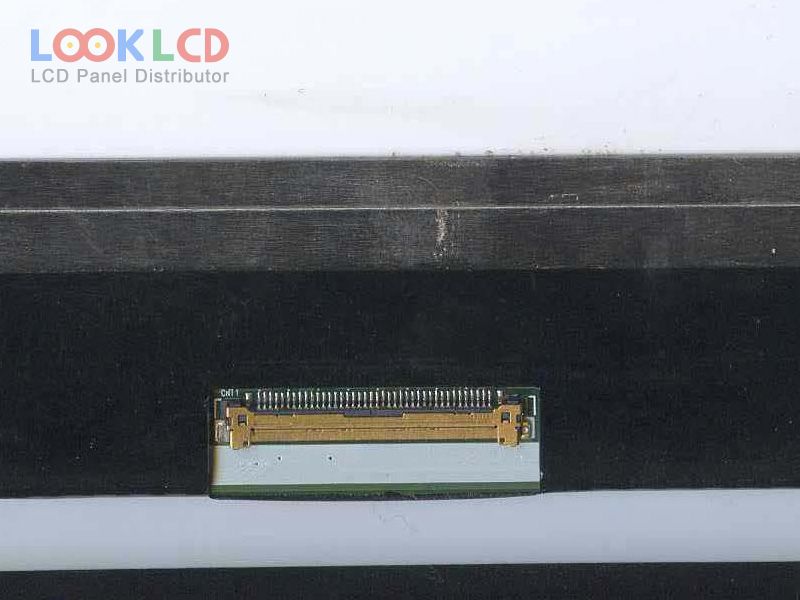

| signalni vmesnik | LVDS (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| LP140WD1-TLD2 | LG Display | 14.0 | 1600×900 |
| LP140WD1-TLM1 | LG Display | 14.0 | 1600×900 |
| LP140WD2-TLB1 | LG Display | 14.0 | 1600×900 |
| LP140WF1-SPJ1 | LG Display | 14.0 | 1920×1080 |
| LP140WF3-SPD1 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLE2 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TPD1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| B140RTN02.3 | AUO | 14.0 | 1600×900 |
| B154EW02 V1 | AUO | 15.4 | 1280×800 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| LP154WU1-TLC1 | LG Display | 15.4 | 1920×1200 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-H01 | Samsung | 15.6 | 1366×768 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
| N140BGN-E42 | Innolux | 14.0 | 1366×768 |
| NT140WHM-N31 | BOE | 14.0 | 1366×768 |
| NT156WHM-N50 | BOE | 15.6 | 1366×768 |
