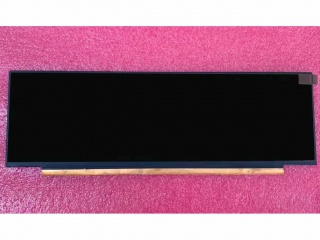

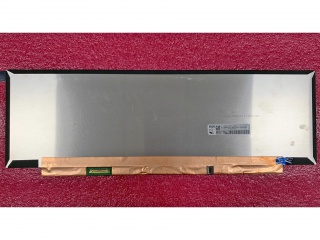

| PartNumber | NV140DQM-N51 |
| Znamka | BOE |
| Velikost | 14.1 |
| Aplikacija | Laptop |
| Resolucija | 1920×550 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 1200:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 10S6P |
| Vmesnik | eDP |
| znamka plošče | BOE |
| panelni model | NV140DQM-N51 (BOE0922) |
| velikost plošče | 14.1" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1920(RGB)×550, 141PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 344.218(W)×98.604(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 350.52(W)×118.65(H) ×2.5(D) mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 1200:1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način prikaza | ADS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| barve zaslona | 16.7M 100% sRGB |
| tip svetilke | 10S6P WLED , 15K hours , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| aplikacija | Laptop |
| signalni vmesnik | eDP (2 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C |
| B141EW03 V3 | AUO | 14.1 | 1280×800 |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| B141XG08 V3 | AUO | 14.1 | 1024×768 |
| LP141WX3-TLA3 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLP2 | LG Display | 14.1 | 1280×800 |
| LTN141AT05-G03 | Samsung | 14.1 | 1280×800 |
| LTN141WD-L05 | Samsung | 14.1 | 1440×900 |
| N141I3-L05 | Innolux | 14.1 | 1280×800 |
| N141I6-D11 | Innolux | 14.1 | 1280×800 |
| QD14TL01 Rev.04 | QDI | 14.1 | 1280×800 |
