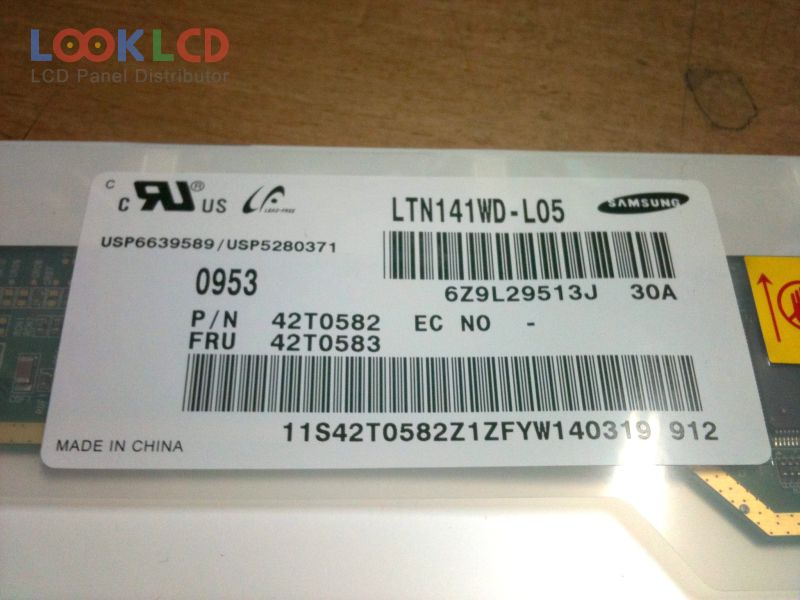

| PartNumber | LTN141WD-L05 |
| Znamka | Samsung |
| Velikost | 14.1 |
| Aplikacija | NBPC |
| Resolucija | 1440×900 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 300:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTN141WD-L05 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 14.1 inch |
| resolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 303.48×189.675 mm |
| oris | 319.5×205.5×5.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare (Haze 42%), Hard coating (2H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 300:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (2 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
