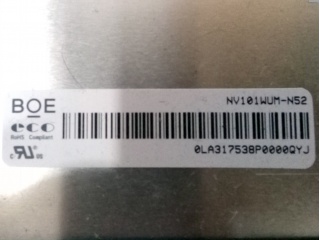

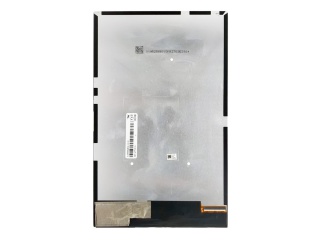

| PartNumber | NV101WUM-N52 |
| Znamka | BOE |
| Velikost | 10.1 |
| Aplikacija | Pad & Tablet |
| Resolucija | 1200×1920 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| proizvajalec | BOE |
| velikost zaslona | 10.1 inch |
| število slikovnih pik | 1200(RGB)×1920 (WUXGA) 225PPI |
| aktivna površina (mm) | 135.36 × 216.576 (H×V) |
| svetilnost | 400 cd/m² (Typ.) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 16.7M 68% NTSC |
| masa | 132g (Typ.) |
| hitrost osveževanja | 60Hz |
| vrsto signala | MIPI (4 data lanes) , 42 pins Connector |
| napajanje z napetostjo | 1.8/3.3V (Typ.)(VDD1/VDD3) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ime modela | NV101WUM-N52 |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 141.56 × 228.226 × 4.2 (H×V×D) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| odgovor | 35 (Max.)(Tr+Td) ms |
| način dela | ADS, Normally Black, Transmissive |
| osvetlitev ozadja | WLED , 15K hours , No Driver |
| uporablja za | Pad & Tablet |
| zaslon na dotik | Without |
