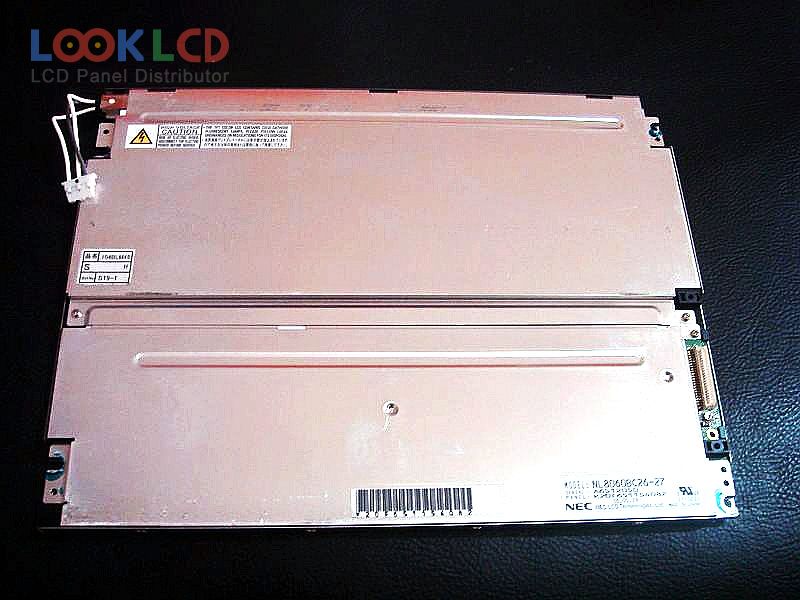

| PartNumber | NL6448BC26-27 |
| Znamka | NLT |
| Velikost | 8.4 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 1000:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | NEC |
| panelni model | NL6448BC26-27 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 8.4 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 170.88×128.16 mm |
| oris | 200×152 mm |
| površino | Clear, Hard coating (3H) |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| odzivni čas | 3/15 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 3 stringsWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6/8-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
