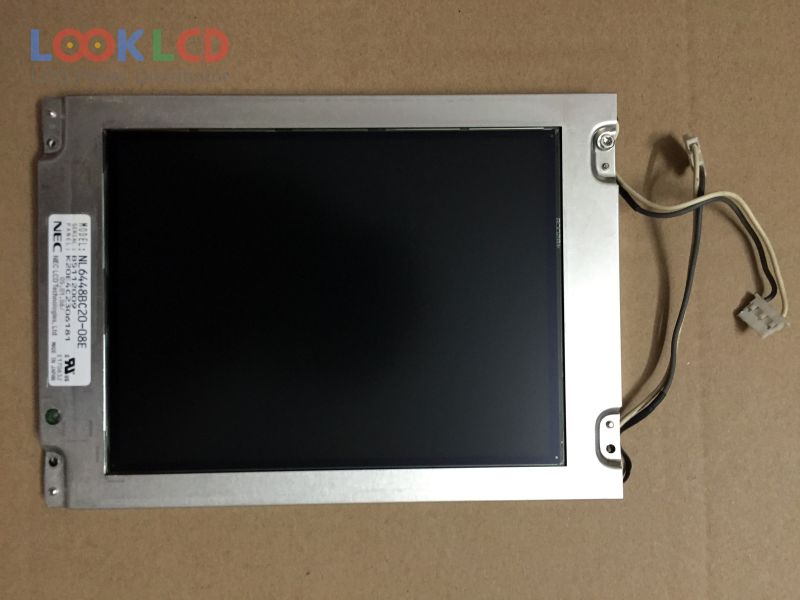

| PartNumber | NL6448BC20-08E |
| Znamka | NLT |
| Velikost | 6.5 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 250:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | NEC |
| panelni model | NL6448BC20-08E |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 6.5 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 132.48×99.36 mm |
| oris | 178.8×126.8 mm |
| površino | Antiglare (Haze 16%), Hard coating (2H), Antireflection |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 250:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193142% |
| odzivni čas | 13/36 (Typ.)(Tr/Td) |
| vidni kot | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | Parallel RGB, 31 pins |
| vhodna napetost | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| aplikacija | IA |
